Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 6 Pin |

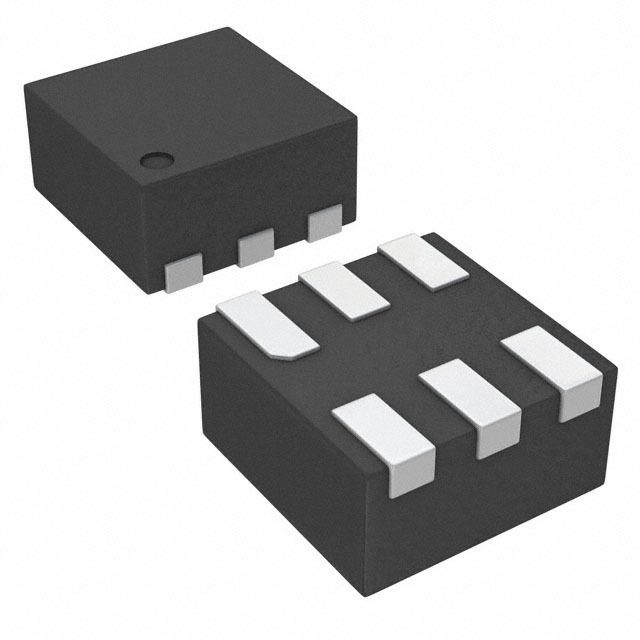

Case/Package | WSON-6 |
Number of Outputs | 1 Output |
Output Voltage | 3.3 V |
Output Current | 200 mA |
Supply Current | 55µA ~ 270µA |
Number of Positions | 6 Position |
Power Dissipation | 0.555 W |
Quiescent Current | 30.0 µA |
Output Capacitor Type | Ceramic |
voltage rating | 175 mV |
Number of Regulated Outputs | 1 Output |
Input Voltage (Max) | 5.5 V |
Input Voltage (Min) | 2 V |
Output Voltage (Min) | 3.3 V |
Output Current (Max) | 0.2 A |
Operating Temperature (Max) | 125 ℃ |
Operating Temperature (Min) | -40 ℃ |
Power Dissipation (Max) | 555 mW |
Accuracy | 2 % |
Input Voltage | ≤5.5 V |
Show | |
Size-Length | 1.5 mm |
Size-Width | 1.5 mm |
Size-Height | 0.75 mm |
Operating Temperature | -40℃ ~ 125℃ |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
