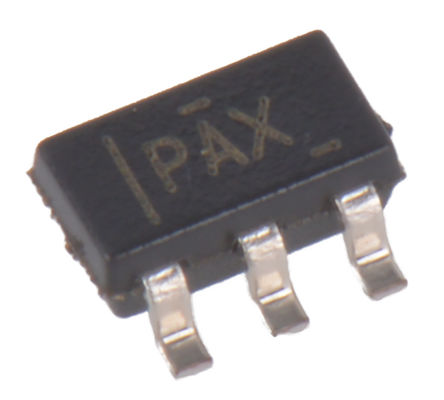

Image is for your reference only,please check specifications for details

TLV70450DBVT - TI
Manufacturer:
TI
ManyChip's Part#:
MC3401040
Category:
Voltage Regulator
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
Single Channel LDO 150mA, Ultra-Low IQ, High Vin Low-Dropout Regulator LDO Regulator Pos 1.2V to 5V 0.15A 5Pin SOT-23 T/R
Stock Locations:
Availability:
260 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.53

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLV70450DBVT is a 5V fixed output ultra-low quiescent current low-dropout (LDO) Linear Regulator designed for extremely power-sensitive applications. Quiescent current is virtually constant over the complete load current and ambient temperature range. These devices are an ideal power management attachment to low-power microcontrollers, such as the MSP430. The device operates over a wide operating input voltage of 2.5 to 24V.
3.2µA Low quiescent current
3.4µA at 100mA IOUT Ground pin current
Stable with a low-ESR, 1µF typical output capacitor
Green product and no Sb/Br

Show

TLV70450DBVT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Power Rating	470 mW
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	150 mA
Supply Current	4.5µA ~ 5.5µA
Number of Positions	5 Position
Power Dissipation	0.47 W
Quiescent Current	3.2 µA
Output Capacitor Type	Ceramic
voltage rating	850 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	24 V
Input Voltage (Min)	2.5 V
Output Voltage (Min)	5 V
Output Current (Max)	150 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	470 mW
Accuracy	±2 %
Input Voltage	≤24 V
	Show
Size-Length	3.05 mm
Size-Width	1.75 mm
Size-Height	1.3 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
