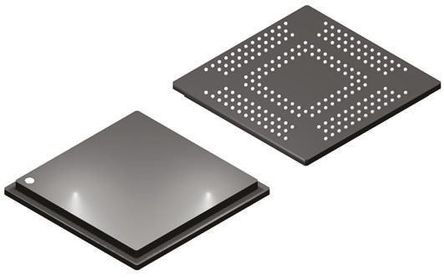

Image is for your reference only,please check specifications for details

TM4C129XNCZADI3 - TI
Manufacturer:
TI
ManyChip's Part#:
MC8436900
Category:
Microcontroller, MCU IC
Package:
NFBGA-212
Datasheet:
Datasheet 3D Model
Description:
MCU 32Bit Tiva C ARM Cortex M4F RISC 1024KB Flash 1.2V/3.3V 212Pin NFBGA
Stock Locations:
Availability:
291 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 33.37

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TM4C129XNCZADI3 is an IoT enabled High-performance 32-bit ARM® Cortex®-M4F based Microcontroller to enable a new class of highly connected designs with the ability to allow critical, real-time control between performance and power. The microcontroller features integrated communication peripherals along with other high-performance analogue and digital functions to offer a strong foundation for many different target uses, spanning from human machine interface to networked system management controllers. In addition, Tiva™ C series microcontroller offers the advantages of ARM"s widely available development tools, system-on-chip (SoC) infrastructure and a large user community. Additionally, this microcontroller uses ARM"s Thumb®-compatible thumb-2 instruction set to reduce memory requirements. Finally, the TM4C1294NCPDT microcontroller is code-compatible to all members of the extensive Tiva™ C Series, providing flexibility to fit precise needs.
ARM® Cortex™-M4F processor core
120MHz operation, 150DMIPS performance
Support for four tamper inputs and configurable tamper event response
Two watchdog timers
Low-power battery-backed Hibernation module
Three independent integrated analogue comparators
One quadrature encoder interface (QEI) module
Eight 16/32-bit general-purpose timer (GPTM) blocks
Green product and no Sb/Br
ESD sensitive device, take proper precaution while handling the device.

Show

TM4C129XNCZADI3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	212 Pin
Case/Package	NFBGA-212
Frequency	120 MHz
Number of Positions	212 Position
Clock Speed	120 MHz, 120 MHz (max)
RAM Memory Size	256 KB
Number of Bits	32 Bit
Power Dissipation	1018 mW
FLASH Memory Size	1024 KB
Number of UARTs	8 UART
Number of ADCs	2 ADC
Number of Inputs and Outputs	140 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1018 mW
Supply Voltage (Max)	3.63 V
Supply Voltage (Min)	2.97 V
	Show
Size-Length	10.1 mm
Size-Width	10.1 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	5A992C
