Description

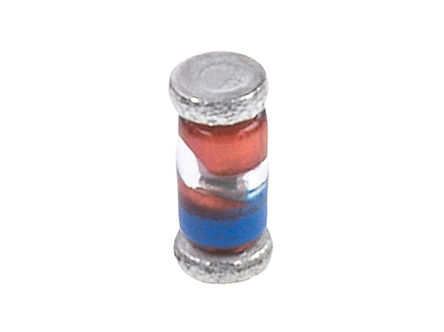

The TMMBAT48FILM is a general purpose metal to silicon Small Signal Schottky Diode with glass case. This diode featuring very low turn-on voltage and fast switching. This device has integrated protection against excessive voltage such as electrostatic discharges.
-65 to 125°C Junction temperature range

Show

TMMBAT48FILM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-80
Voltage Rating (DC)	40.0 V
Current Rating	350 mA
Capacitance	20.0 pF
Output Current	≤350 mA
Load Current	0.35 A
Number of Positions	2 Position
Forward Voltage	750mV @200mA
Polarity	Standard
Reverse recovery time	10 ns
Forward Current	350 mA
Max Forward Surge Current (Ifsm)	7.5 A
Maximum Forward Voltage (Max)	900 mV
Forward Current (Max)	350 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature (Max)	125 ℃
Power Dissipation (Max)	330 mW
	Show
Size-Length	3.4 mm
Size-Width	1.62 mm
Size-Height	1.62 mm
Operating Temperature	-65℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
