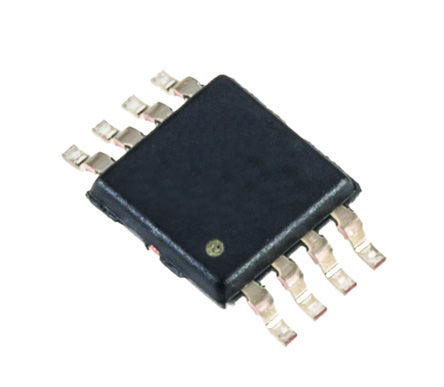

Image is for your reference only,please check specifications for details

TMP75CIDGKT - TI
Manufacturer:
TI
ManyChip's Part#:
MC17184866
Category:
Temperature Sensor
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TMP75CIDGKT Temperature Sensor IC, Digital, ± 1℃, -55℃, 125℃, VSSOP, 8Pins
Stock Locations:
Availability:
1,100 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.46

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TMP75CIDGKT is an Integrated Digital temperature sensor with a 12-bit analogue-to-digital converter (ADC) that is pin and register compatible with the NCT75 and ADT75. The TMP75C features SMBus and two-wire interface compatibility and allows up to eight devices on the same bus with the SMBus over-temperature alert function. The programmable temperature limits and the ALERT pin allow the sensor to operate as a stand-alone thermostat or an over-temperature alarm for power throttling or system shutdown. The factory-calibrated temperature accuracy and the noise-immune digital interface make the TMP75C the preferred solution for temperature compensation of other sensors and electronic components, without the need for additional system-level calibration or elaborate board layout for distributed temperature sensing.
Up to 8 Pin-programmable bus addresses
Over-temperature ALERT pin with programmable trip values
Shutdown mode for battery power saving
One-shot conversion mode
15µA (typical) Active Quiescent current
0.3µA Typical shutdown quiescent current

Show

TMP75CIDGKT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Supply Voltage (DC)	1.40V (min)
Number of Positions	8 Position
Quiescent Current	15.0 µA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Accuracy	±1 ℃
Supply Voltage	1.4V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.4 V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	3.1 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
