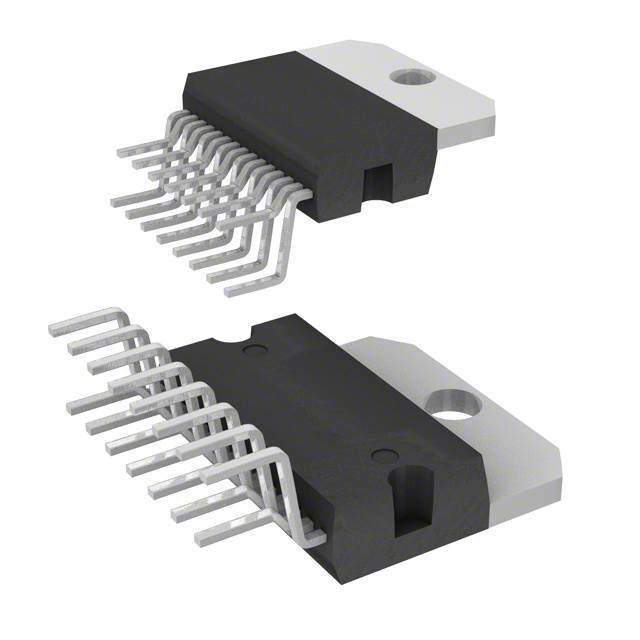

Image is for your reference only,please check specifications for details
- TDA7393 - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC134745497
-
Category:Audio Amplifier IC
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Audio Amp Speaker 2CH Stereo 30W Class-AB 15Pin(15+Tab) MULTIWATT V Tube
-
Stock Locations:
-
Availability:295 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Amplifier IC 2-Channel (Stereo) Class AB 15-Multiwatt
TDA7393 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 15 Pin |
| Case/Package | Multiwatt-15 |
| Supply Voltage (DC) | 18.0 V |
| Output Current | 5500 mA |
| Supply Current | 180 mA |
| Number of Channels | 2 Channel |
| Power Dissipation | 50000 mW |
| Quiescent Current | 90.0 mA |
| Output Power | 30 W |
| Gain | 32 dB |
| Output Current (Max) | 5500 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Power Dissipation (Max) | 50000 mW |
| Supply Voltage | 8V ~ 18V |
| Supply Voltage (Max) | 18 V |
| Show | |
| Size-Length | 19.6 mm |
| Size-Width | 5 mm |
| Size-Height | 10.7 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
