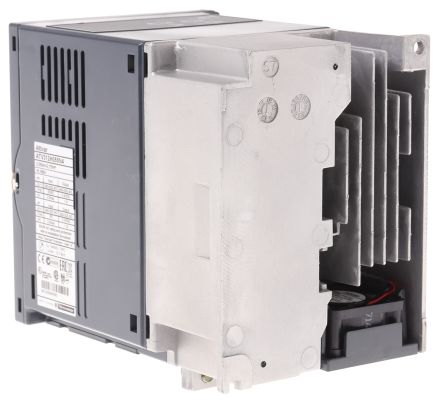

Image is for your reference only,please check specifications for details

ATV312H055N4 - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC135381265
Category:
Motors, Drive
Datasheet:
Datasheet 3D Model
Description:
Frequency converter [Schneider Electric] ATV312H055N4 Frequency converter 3606480077470
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Ideally suited to the needs of Material Handling, Packaging, Food, Beverage, Pump, Fan and other OEM machines, the Altivar 312 Variable Frequency Drive offers the highest overtorque and is the only drive in its class with a remote graphical keypad. The Altivar 312 Drive redefines the concept of “ease of use” by integrating the best-in-class features from the entire family of Altivar Drives into its user interface. This starts with an intuitive rotary wheel for navigation and adjustments, as well as large control buttons on the face of the drive, protected by a snap-lock seal. You can also use advanced features such as the same graphical keypad used with the Altivar 61 and 71 drives, the new LED display of the Altivar 12 drive or even Bluetooth wireless technology and your mobile phone.
**Features:**
* All the Advantages of Altivar 31 Drive
* Excellent Resistance to Harsh Environments (50° C)
* Coated Cards as Standard (IEC 60721-3-3 Classes 3c2 and 3s2)
* Excellent Resistance to Power Supply and Motor Interference
* 0.25 HP to 20 HP
* Single-Phase 200 V to 240 V, Three-Phase 200 V to 240 V, Three-Phase 380 V to 500 V, Three-Phase 525 V to 600 V
* Integrated Class 2 Emc Filter for Radiated and Conducted Emissions
* Din Rail Mounting

Show

ATV312H055N4 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Current Rating	1.9 A
Power Rating	550 W
Output Voltage	≤500 V
Output Current	1.90 A
Output Voltage (Max)	500 V
Output Current (Max)	1.9 A
Voltage Rating	480 V
Supply Voltage	380V ~ 500V
Supply Voltage (Max)	500 VAC
Supply Voltage (Min)	380 VAC
	Show
Size-Length	143 mm
Size-Width	152 mm
Product Lifecycle Status	Not Recommended for New Design
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
