Description
- description
- The TMS320C67x DSPs (including the TMS320C6711, TMS320C6711B, TMS320C6711C, TMS320C6711D devices†) compose the floating-point DSP family in the TMS320C6000 DSP platform. The C6711, C6711B, C6711C, and C6711D devices are based on the high-performance, advanced very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making these DSPs an excellent choice for multichannel and multifunction applications.
- • Excellent-Price/Performance Floating-Point
- Digital Signal Processors (DSPs): TMS320C67x™ (C6711, C6711B and C6711C)
- − Eight 32-Bit Instructions/Cycle
- − 100-, 150-, 167-, 200-MHz Clock Rates
- − 10-, 6.7-, 6-, 5-ns Instruction Cycle Time
- − 600, 900, 1000, 1200 MFLOPS
- • Advanced Very Long Instruction Word (VLIW) C67x™ DSP Core
- − Eight Highly Independent Functional Units:
- − Four ALUs (Floating- and Fixed-Point)
- − Two ALUs (Fixed-Point)
- − Two Multipliers (Floating- and Fixed-Point)
- − Load-Store Architecture With 32 32-Bit General-Purpose Registers
- − Instruction Packing Reduces Code Size
- − All Instructions Conditional
- • Instruction Set Features
- − Hardware Support for IEEE Single-Precision and Double-Precision Instructions
- − Byte-Addressable (8-, 16-, 32-Bit Data)
- − 8-Bit Overflow Protection
- − Saturation
- − Bit-Field Extract, Set, Clear
- − Bit-Counting
- − Normalization
- • L1/L2 Memory Architecture
- − 32K-Bit (4K-Byte) L1P Program Cache (Direct Mapped)
- − 32K-Bit (4K-Byte) L1D Data Cache (2-Way Set-Associative)
- − 512K-Bit (64K-Byte) L2 Unified Mapped RAM/Cache (Flexible Data/Program Allocation)
- • Device Configuration
- − Boot Mode: HPI, 8-, 16-, 32-Bit ROM Boot
- − Endianness: Little Endian, Big Endian
- • Enhanced Direct-Memory-Access (EDMA) Controller (16 Independent Channels)
- • 32-Bit External Memory Interface (EMIF)
- − Glueless Interface to Asynchronous Memories: SRAM and EPROM
- − Glueless Interface to Synchronous Memories: SDRAM and SBSRAM
- − 256M-Byte Total Addressable External Memory Space
- • 16-Bit Host-Port Interface (HPI)
- • Two Multichannel Buffered Serial Ports (McBSPs)
- − Direct Interface to T1/E1, MVIP, SCSA Framers
- − ST-Bus-Switching Compatible
- − Up to 256 Channels Each
- − AC97-Compatible
- − Serial-Peripheral-Interface (SPI) Compatible (Motorola)
- • Two 32-Bit General-Purpose Timers
- • Flexible Phase-Locked-Loop (PLL) Clock Generator [C6711/11B]
- • Flexible Software Configurable PLL-Based Clock Generator Module [C6711C]
- • A Dedicated General-Purpose Input/Output (GPIO) Module With 5 Pins [C6711C]
- • IEEE-1149.1 (JTAG†)
- Boundary-Scan-Compatible
- • 256-Pin Ball Grid Array (BGA) Package (GFN Suffix) [C6711/C6711B Only]
- • 272-Pin Ball Grid Array (BGA) Package (GDP Suffix) [C6711C Only]
- • CMOS Technology
- − 0.13-µm/6-Level Copper Metal Process (C6711C)
- − 0.18-µm/5-Level Copper Metal Process (C6711/11B)
- • 3.3-V I/O, 1.20-V Internal (C6711C)‡
- • 3.3-V I/O, 1.8-V Internal (C6711B/C6711−100)
- • 3.3-V I/O, 1.9-V Internal (C6711-150)

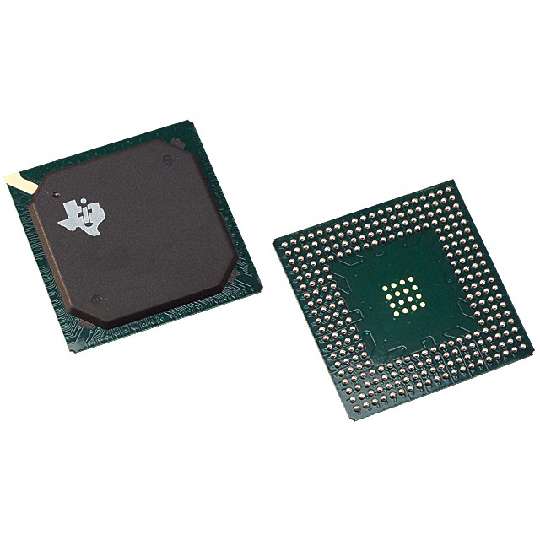

TMS320C6711BGFN150 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 256 Pin |
| Case/Package | BGA-256 |
| Frequency | 150 MHz |
| Clock Speed | 150MHz (max) |
| Number of I/O Pins | 5 IO |
| Operating Temperature (Max) | 90 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Show | |
| Operating Temperature | 0℃ ~ 90℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tray |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | 3A991.a.2 |
| HK STC License | NLR |
