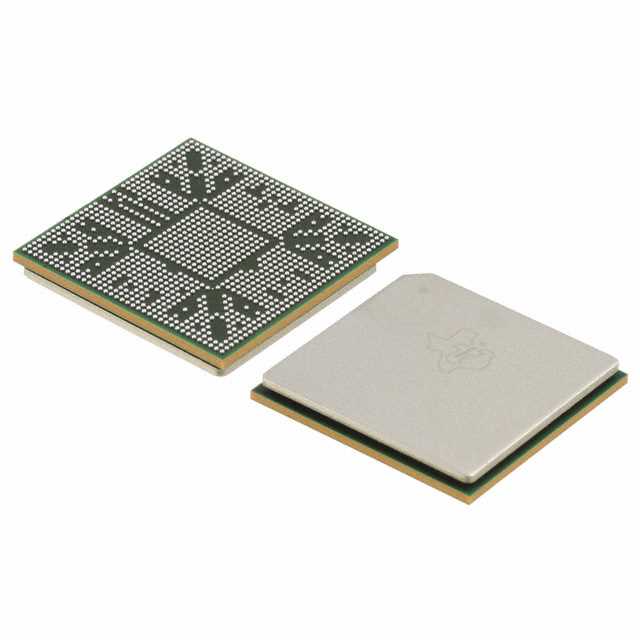

Image is for your reference only,please check specifications for details

TMS320DM8168BCYG2 - TI
Manufacturer:
TI
ManyChip's Part#:
MC122137506
Category:
DSP, Digital Signal Processor
Package:
FCBGA-1031
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TMS320DM8168BCYG2 VIDEO PROCESSOR, 800MHz, FCBGA-1031
Stock Locations:
Availability:
246 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 234.85

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This TMS320DM8168BCYG2 application processor from Texas Instruments will exceed your processing needs. This part has an operating temperature range of 0 °C to 95 °C. It has a maximum clock speed of 1100 MHz. This device is based on the ARM Cortex A8 core architecture. It has romless program memory. Its Ethernet interface type is mii and supports up to 10Mbps/100Mbps/1000Mbps. This device has a minimum operating supply voltage of 0.8 V and a maximum of 1.05 V. This device utilizes 0.04um technology.

Show

TMS320DM8168BCYG2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	1031 Pin
Case/Package	FCBGA-1031
Supply Voltage (DC)	1.05V (max)
Number of Positions	1031 Position
RAM Memory Size	64 KB
Number of UARTs	3 UART
Operating Temperature (Max)	95 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage (Max)	1.05 V
	Show
Size-Height	2.81 mm
Operating Temperature	0℃ ~ 95℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2017/07/07
ECCN Code	5A002
