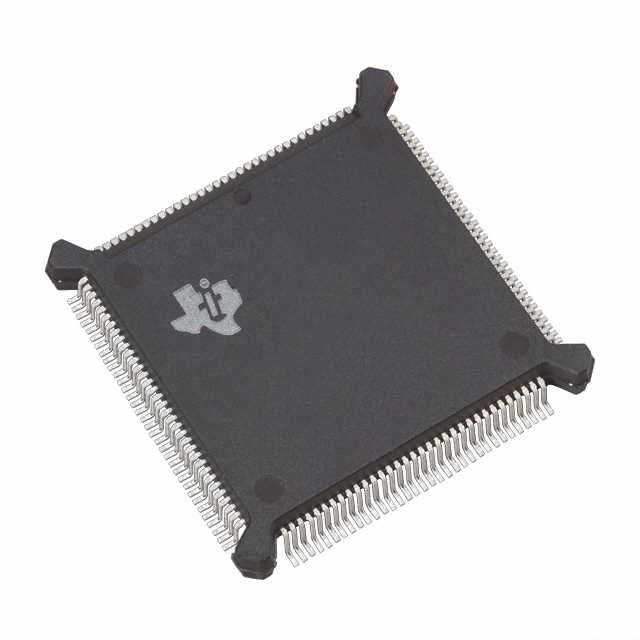

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- description
- The TMS320C240 and TMS320F240 devices are the first members of a new family of DSP controllers based on the TMS320C2xx generation of 16-bit fixed-point digital signal processors (DSPs). Unless otherwise noted, the term ’x240 refers to both the TMS320C240 and the TMS320F240. Table 1 provides a comparison of the features of each device.
- ● High-Performance Static CMOS Technology
- ● Includes the T320C2xLP Core CPU
- – Object Compatible With the TMS320C2xx
- – Source Code Compatible With TMS320C25
- – Upwardly Compatible With TMS320C5x
- – 132-Pin Plastic Quad Flat Package (PQ Suffix)
- – 50-ns Instruction Cycle Time
- ● Industrial and Automotive Temperature Available
- ● Memory
- – 544 Words × 16 Bits of On-Chip Data/Program Dual-Access RAM
- – 16K Words × 16 Bits of On-Chip Program ROM (’C240)/Flash EEPROM (’F240)
- – 224K Words × 16 Bits of Total Memory Address Reach (64K Data, 64K Program and 64K I/O, and 32K Global Memory Space)
- ● Event-Manager Module
- – 12 Compare/Pulse-Width Modulation (PWM) Channels
- – Three 16-Bit General-Purpose Timers With Six Modes, Including Continuous Upand Up/Down Counting
- – Three 16-Bit Full-Compare Units With Deadband
- – Three 16-Bit Simple-Compare Units
- – Four Capture Units (Two With Quadrature Encoder-Pulse Interface Capability)
- ● Dual 10-Bit Analog-to-Digital Conversion Module
- ● 28 Individually Programmable, Multiplexed I/O Pins
- ● Phase-Locked-Loop (PLL)-Based Clock Module
- ● Watchdog Timer Module (With Real-Time Interrupt)
- ● Serial Communications Interface (SCI) Module
- ● Serial Peripheral Interface (SPI) Module
- ● Six External Interrupts (Power Drive Protect, Reset, NMI, and Three Maskable Interrupts)
- ● Four Power-Down Modes for Low-Power Operation
- ● Scan-Based Emulation
- ● Development Tools Available:
- – Texas Instruments (TI) ANSI C Compiler, Assembler/Linker, and C-Source Debugger
- – Scan-Based Self-Emulation (XDS510)
- – Third-Party Digital Motor Control and Fuzzy-Logic Development Support
TMS320F240PQS Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 132 Pin |
| Case/Package | BQFP-132 |
| Frequency | 20 MHz |
| Supply Voltage (DC) | 4.50V (min) |
| Clock Speed | 20.0 MHz |
| RAM Memory Size | 1K x 8 |
| Number of Bits | 16 Bit |
| FLASH Memory Size | 32 KB |
| Number of I/O Pins | 28 IO |
| Number of ADCs | 2 ADC |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Height | 3.81 mm |
| Operating Temperature | -40℃ ~ 125℃ (TA) |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
