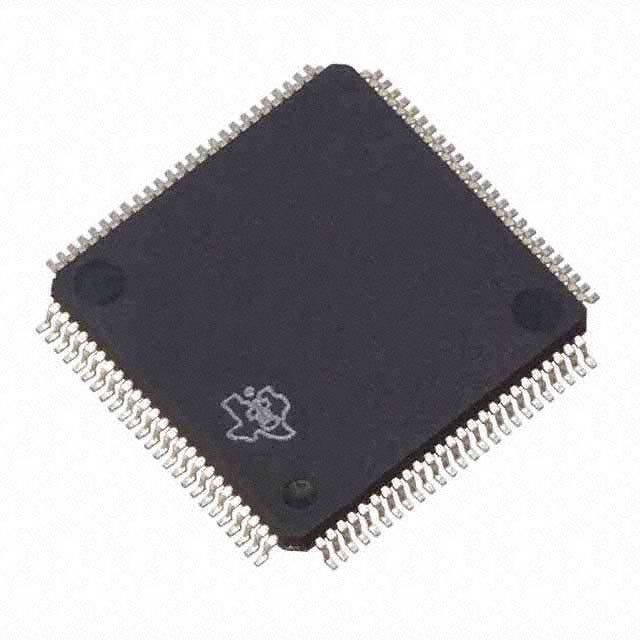

Image is for your reference only,please check specifications for details

TMS320F28016PZA - TI
Manufacturer:
TI
ManyChip's Part#:
MC5436040
Category:
Microcontroller, MCU IC
Package:
LQFP-100
Datasheet:
Datasheet 3D Model
Description:
MCUs - C2000 Digital Signal Controllers 32Bit DSC w/ 32KB Flash ,DSP Fixed-Point 32Bit 100MHz 100MIPS (100Pin LQFP)
Stock Locations:
Availability:
159 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 15.64

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Introduction
The TMS320F2809, TMS320F2808, TMS320F2806, TMS320F2802, TMS320F2801, TMS320F28015, TMS320F28016, TMS320C2802, and TMS320C2801, devices, members of the TMS320C28x™ DSP generation, are highly integrated, high-performance solutions for demanding control applications.
Features
• High-Performance Static CMOS Technology
– 100 MHz (10-ns Cycle Time)
– 60 MHz (16.67-ns Cycle Time)
– Low-Power (1.8-V Core, 3.3-V I/O) Design
• JTAG Boundary Scan Support(1)
• High-Performance 32-Bit CPU (TMS320C28x)
– 16 x 16 and 32 x 32 MAC Operations
– 16 x 16 Dual MAC
– Harvard Bus Architecture
– Atomic Operations
– Fast Interrupt Response and Processing
– Unified Memory Programming Model
– Code-Efficient (in C/C++ and Assembly)
• On-Chip Memory
– F2809: 128K X 16 Flash, 18K X 16 SARAM
F2808: 64K X 16 Flash, 18K X 16 SARAM
F2806: 32K X 16 Flash, 10K X 16 SARAM
F2802: 32K X 16 Flash, 6K X 16 SARAM
F2801: 16K X 16 Flash, 6K X 16 SARAM
F2801x: 16K X 16 Flash, 6K X 16 SARAM
– 1K x 16 OTP ROM (Flash Devices Only)
– C2802: 32K X 16 ROM, 6K X 16 SARAM
C2801: 16K X 16 ROM, 6K X 16 SARAM
• Boot ROM (4K x 16)
– With Software Boot Modes (via SCI, SPI, CAN, I2C, and Parallel I/O)
– Standard Math Tables
• Clock and System Control
– Dynamic PLL Ratio Changes Supported
– On-Chip Oscillator
– Watchdog Timer Module
• Any GPIO A Pin Can Be Connected to One of the Three External Core Interrupts
• Peripheral Interrupt Expansion (PIE) Block That Supports All 43 Peripheral Interrupts
• 128-Bit Security Key/Lock
– Protects Flash/OTP/L0/L1 Blocks
– Prevents Firmware Reverse Engineering
• Three 32-Bit CPU Timers
• Enhanced Control Peripherals
– Up to 16 PWM Outputs
– Up to 6 HRPWM Outputs With 150 ps MEP Resolution
– Up to Four Capture Inputs
– Up to Two Quadrature Encoder Interfaces
– Up to Six 32-bit/Six 16-bit Timers
• Serial Port Peripherals
– Up to 4 SPI Modules
– Up to 2 SCI (UART) Modules
– Up to 2 CAN Modules
– One Inter-Integrated-Circuit (I2C) Bus
• 12-Bit ADC, 16 Channels
– 2 x 8 Channel Input Multiplexer
– Two Sample-and-Hold
– Single/Simultaneous Conversions
– Fast Conversion Rate:
80 ns - 12.5 MSPS (F2809 only)
160 ns - 6.25 MSPS (280x)
267 ns - 3.75 MSPS (F2801x)
– Internal or External Reference

Show

TMS320F28016PZA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	100 Pin
Case/Package	LQFP-100
Frequency	60 MHz
Number of Positions	100 Position
Clock Speed	60.0 MHz
RAM Memory Size	6K x 16
FLASH Memory Size	32 KB
Number of UARTs	1 UART
Number of ADCs	1 ADC
Number of Inputs and Outputs	35 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.71V ~ 1.89V
Supply Voltage (Max)	1.89 V
Supply Voltage (Min)	1.71 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	3A991.a.2
