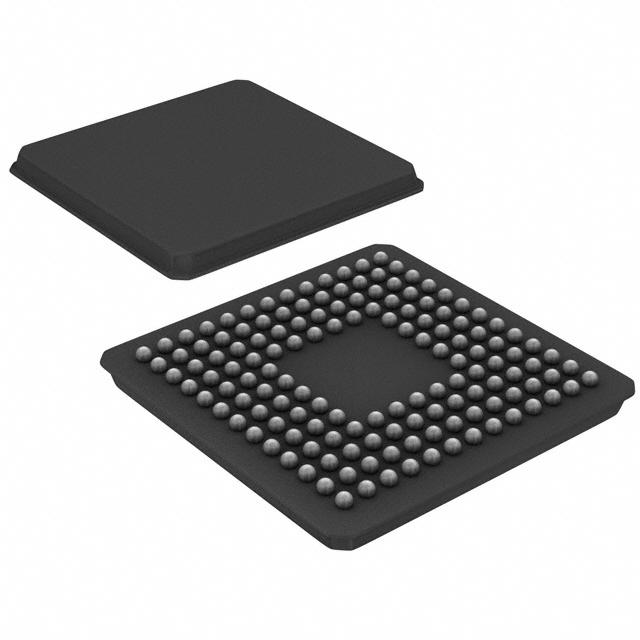

Image is for your reference only,please check specifications for details

TMS320VC5416GGU160 - TI
Manufacturer:
TI
ManyChip's Part#:
MC39384840
Category:
DSP, Digital Signal Processor
Package:
BGA-144
Datasheet:
Datasheet 3D Model
Description:
DSP Fixed-Point 16Bit 160MHz 160MIPS 144Pin BGA MICROSTAR
Stock Locations:
Availability:
1,928 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 45.05

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Introduction
This section describes the main features of the TMS320VC5416, lists the pin assignments, and describes the function of each pin. This data manual also provides a detailed description section, electrical specifications, parameter measurement information, and mechanical data about the available packaging.
Description
The TMS320VC5416 fixed-point, digital signal processor (DSP) (hereafter referred to as the device unless otherwise specified) is based on an advanced modified Harvard architecture that has one program memory bus and three data memory buses. This processor provides an arithmetic logic unit (ALU) with a high degree of parallelism, application-specific hardware logic, on-chip memory, and additional on-chip peripherals. The basis of the operational flexibility and speed of this DSP is a highly specialized instruction set.
TMS320VC5416 Features
• Advanced Multibus Architecture With Three Separate 16-Bit Data Memory Buses and One Program Memory Bus
• 40-Bit Arithmetic Logic Unit (ALU) Including a 40-Bit Barrel Shifter and Two Independent 40-Bit Accumulators
• 17- × 17-Bit Parallel Multiplier Coupled to a 40-Bit Dedicated Adder for Non-Pipelined Single-Cycle Multiply/Accumulate (MAC) Operation
• Compare, Select, and Store Unit (CSSU) for the Add/Compare Selection of the Viterbi Operator
• Exponent Encoder to Compute an Exponent Value of a 40-Bit Accumulator Value in a Single Cycle
• Two Address Generators With Eight Auxiliary Registers and Two Auxiliary Register Arithmetic Units (ARAUs)
• Data Bus With a Bus Holder Feature
• Extended Addressing Mode for 8M × 16-Bit Maximum Addressable External Program Space
• 128K × 16-Bit On-Chip RAM Composed of:
– Eight Blocks of 8K × 16-Bit On-Chip Dual-Access Program/Data RAM
– Eight Blocks of 8K × 16-Bit On-Chip Single-Access Program RAM
• 16K × 16-Bit On-Chip ROM Configured for Program Memory
• Enhanced External Parallel Interface (XIO2)
• Single-Instruction-Repeat and Block-Repeat Operations for Program Code
• Block-Memory-Move Instructions for Better Program and Data Management
• Instructions With a 32-Bit Long Word Operand
• Instructions With Two- or Three-Operand Reads
• Arithmetic Instructions With Parallel Store and Parallel Load
• Conditional Store Instructions
• Fast Return From Interrupt
• On-Chip Peripherals
– Software-Programmable Wait-State Generator and Programmable Bank-Switching
– On-Chip Programmable Phase-Locked Loop (PLL) Clock Generator With External Clock Source
– One 16-Bit Timer
– Six-Channel Direct Memory Access (DMA) Controller
– Three Multichannel Buffered Serial Ports (McBSPs)
– 8/16-Bit Enhanced Parallel Host-Port Interface (HPI8/16)
• Power Consumption Control With IDLE1, IDLE2, and IDLE3 Instructions With Power-Down Modes
• CLKOUT Off Control to Disable CLKOUT
• On-Chip Scan-Based Emulation Logic, IEEE Std 1149.1 (JTAG) Boundary Scan Logic(1)
• 144-Pin Ball Grid Array (BGA)(GGU Suffix)
• 144-Pin Low-Profile Quad Flatpack (LQFP)(PGE Suffix)
• 6.25-ns Single-Cycle Fixed-Point Instruction Execution Time (160 MIPS)
• 8.33-ns Single-Cycle Fixed-Point Instruction Execution Time (120 MIPS)
• 3.3-V I/O Supply Voltage (160 and 120 MIPS)
• 1.6-V Core Supply Voltage (160 MIPS)
• 1.5-V Core Supply Voltage (120 MIPS)

Show

TMS320VC5416GGU160 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	144 Pin
Case/Package	BGA-144
Frequency	120 GHz
Clock Speed	160 MHz
RAM Memory Size	256 KB
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
	Show
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	Non-Compliant
Lead-Free Status	Lead Free
ECCN Code	3A991.a.2
