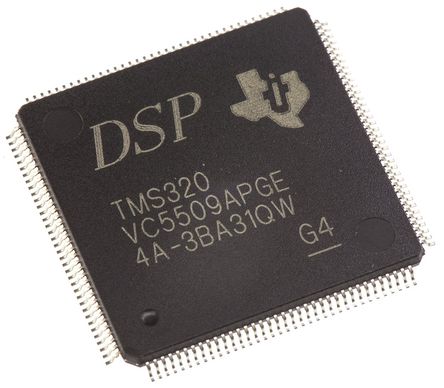

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TMS320VC5509APGE is a Digital Signal Processor based on the TMS320C55x DSP generation CPU processor core. The C55x™ DSP architecture achieves high performance and low power through increased parallelism and total focus on reduction in power dissipation. The CPU supports an internal bus structure that is composed of one program bus, three data read buses, two data write buses and additional buses dedicated to peripheral and DMA activity. These buses provide the ability to perform up to three data reads and two data writes in a single cycle. In parallel, the DMA controller can perform up to two data transfers per cycle independent of the CPU activity. The C55x CPU provides two multiply-accumulate (MAC) units, each capable of 17-bit x 17-bit multiplication in a single cycle. A central 40-bit arithmetic/logic unit (ALU) is supported by an additional 16-bit ALU. It supports a variable byte width instruction set for improved code density.
One/two instruction(s) executed per cycle
Two arithmetic and logic units (ALUs)
Programmable low-power control of six device functional domains
On-chip scan-based emulation logic
Programmable phase-locked loop clock generator
USB full-speed (12Mbps) slave port supporting bulk, interrupt and isochronous transfers
Inter-integrated circuit (I²C) multi-master and slave interface
Real-time clock (RTC) with crystal input, separate clock domain and separate power supply
Green product and no Sb/Br

Show

TMS320VC5509APGE Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	144 Pin
Case/Package	LQFP-144
Frequency	200 MHz
Supply Voltage (DC)	1.55V (min)
Number of Positions	144 Position
Clock Speed	108144200 MHz
RAM Memory Size	256 KB
Number of Bits	32 Bit
Number of I/O Pins	7 IO
Number of ADCs	1 ADC
Number of Inputs and Outputs	7 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	20 mm
Size-Width	20 mm
Size-Height	1.4 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	3A991.a.2
HK STC License	NLR
