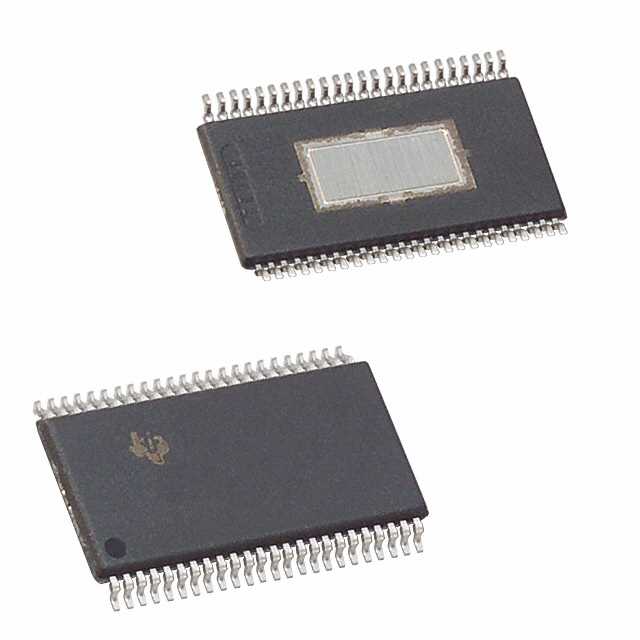

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

TPA032D01DCA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	HTSSOP-48
Supply Voltage (DC)	14.0 V
Output Current	1 mA
Number of Channels	48 Channel
Power Dissipation	5600 mW
Quiescent Current	25.0 mA
Bandwidth	20.0 kHz
Output Power	10 W
Output Current (Max)	1 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	5600 mW
Supply Voltage	8V ~ 14V
	Show
Size-Length	12.5 mm
Size-Width	6.1 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
