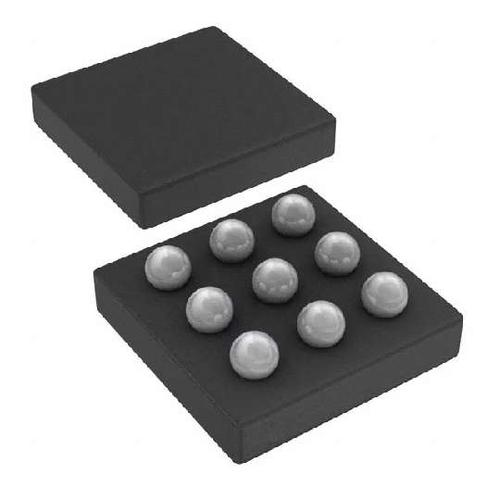

Image is for your reference only,please check specifications for details

TPA2010D1YZFR - TI
Manufacturer:
TI
ManyChip's Part#:
MC4475861
Category:
Audio Amplifier IC
Package:
DSBGA-9
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPA2010D1YZFR Audio Power Amplifier, D, 1Channel, 2.5W, 2.5V to 5.5V, DSBGA, 9Pins
Stock Locations:
Availability:
141 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.94

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPA2010D1 (sometimes referred to as TPA2010) is a 2.5-W high efficiency filter-free class-D audio power amplifier (class-D amp) in a 1,45 mm × 1,45 mm die-size ball grid array (DSBGA) that requires only three external components.
Features like 88% efficiency, –75-dB PSRR, improved RF-rectification immunity, and 8 mm2 total PCB area make the TPA2010D1 (TPA2010) class-D amp ideal for cellular handsets. A fast start-up time of 1 ms with minimal pop makes the TPA2010D1 (TPA2010) ideal for PDA applications.
In cellular handsets, the earpiece, speaker phone, and melody ringer can each be driven by the TPA2010D1. The TPA2010D1 allows independent gain while summing signals from separate sources and has a low 36 µV noise floor that is A-weighted.

Show

TPA2010D1YZFR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	9 Pin
Case/Package	DSBGA-9
Supply Voltage (DC)	5.50 V
Number of Channels	1 Channel
Number of Positions	9 Position
Power Dissipation	780 mW
Common Mode Rejection Ratio	68 dB
Quiescent Current	3.40 mA
Output Power	2.5 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	780 mW
Minimum CMRR Range	68 dB
Supply Voltage	2.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.5 V
	Show
Size-Length	1.8 mm
Size-Width	1.8 mm
Size-Height	0.35 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
