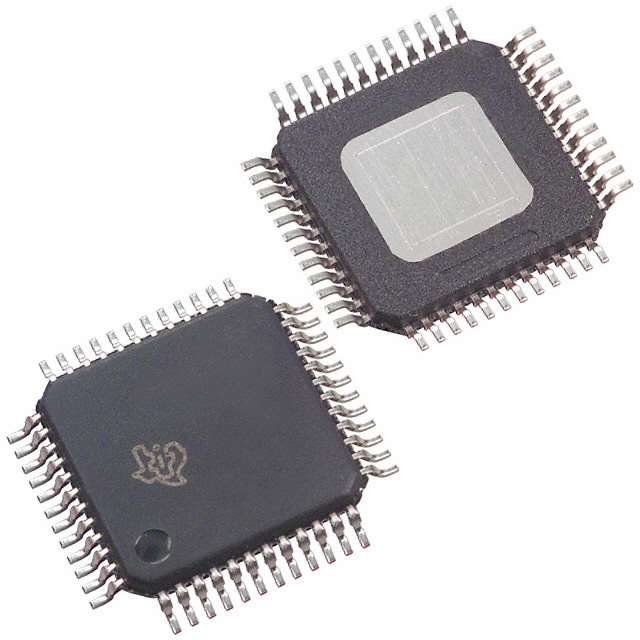

Image is for your reference only,please check specifications for details
- TPA3004D2PHPR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC32931959
-
Category:Audio Amplifier IC
-
Package:HTQFP-48
-
Datasheet:Datasheet 3D Model
-
Description:12W StereoClass-D Audio Power Amplifier with Volume Control (TPA3004) 48-HTQFP -40℃ to 85℃
-
Stock Locations:
-
Availability:460 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.49
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The TPA3004D2 is a 12-W (per channel) efficient, Class-D audio amplifier for driving bridged-tied stereo speakers. The TPA3004D2 can drive stereo speakers as low as 4 Ω. The high efficiency of the TPA3004D2 eliminates the need for external heatsinks when playing music.
- FEATURES
- 12-W/Ch Into an 8-ΩLoad From 15-V Supply
- Efficient, Class-D Operation Eliminates Heatsinks and Reduces Power Supply Requirements
- 32-Step DC Volume Control From −40 dB to 36 dB
- Line Outputs For External Headphone Amplifier With Volume Control
- Regulated 5-V Supply Output for Powering TPA6110A2
- Space-Saving, Thermally-Enhanced PowerPAD™ Packaging
- Thermal and Short-Circuit Protection
- APPLICATIONS
- LCD Monitors and TVs
- Powered Speakers
TPA3004D2PHPR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | HTQFP-48 |
| Supply Voltage (DC) | 18.0 V |
| Supply Current | 28.5 mA |
| Power Dissipation | 4.3 W |
| Quiescent Current | 16.0 mA |
| Output Power | 12.0 W |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 4300 mW |
| Supply Voltage | 8.5V ~ 18V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
