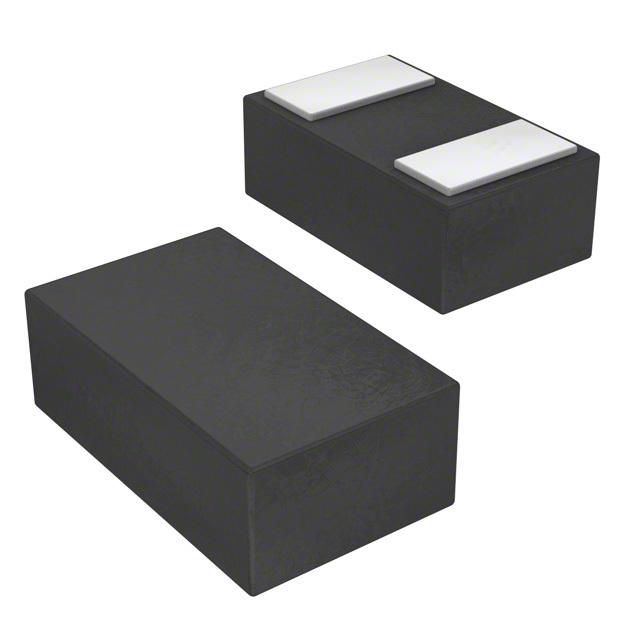

Image is for your reference only,please check specifications for details

TPD1E04U04DPLT - TI
Manufacturer:
TI
ManyChip's Part#:
MC27239944
Category:
Diode
Package:
X2SON-2
Datasheet:
Datasheet 3D Model
Description:
1Channel ESD Protection Diode With Low Dynamic Resistance for HDMI 2.0 and USB 3.0 2-X2SON -40℃ to 125℃
Stock Locations:
Availability:
327 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.35

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

TPD1E04U04DPLT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	X2SON-2
Operating Voltage	3.6 V
Capacitance	0.65 pF
Breakdown Voltage	4.5 V
Number of Positions	2 Position
Clamping Voltage	8.9 V
Max Breakdown Voltage	7.5 V
Peak Pulse Power	19 W
Min Breakdown Voltage	4.5 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Height	0.27 mm
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
