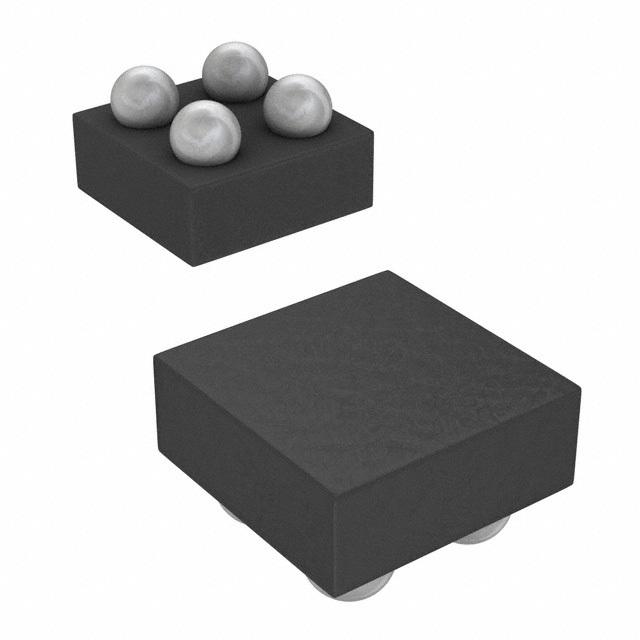

Image is for your reference only,please check specifications for details
- TPS22902YFPR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC26289244
-
Category:Power Distribution
-
Package:XFBGA-4
-
Datasheet:Datasheet 3D Model
-
Description:3.6V, 0.5A, 83mΩ Load Switch with Quick Output Discharge 4-DSBGA -40℃ to 85℃
-
Stock Locations:
-
Availability:9,900 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.45
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Look no further than Texas Instruments" TPS22902YFPR power switch, a useful tool used for safely dealing with high-end frequencies. This charge controller has single output. This device has a maximum power dissipation of 480 mW. This charge controller has an input voltage of 1 to 3.6 V. It features 0.174 Ohm switch on resistance. Its maximum power dissipation is 480 mW. This device has a supply current of 0.000137 mA and a minimum output current of 0.5(Max) A. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This charge controller has a minimum operating temperature of -40 °C and a maximum of 85 °C.
TPS22902YFPR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | XFBGA-4 |
| Number of Outputs | 1 Output |
| Output Current | 0.5 A |
| Supply Current | 0.000137 mA |
| Number of Channels | 1 Channel |
| Power Dissipation | 0.48 W |
| Quiescent Current | 204 nA |
| Output Current (Max) | 500 mA |
| Output Current (Min) | 0.5 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 480 mW |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 1 V |
| Input Voltage | 1V ~ 3.6V |
| Show | |
| Size-Height | 0.33 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
