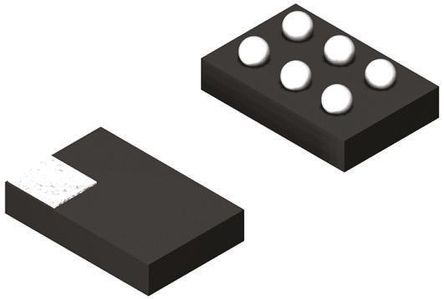

Image is for your reference only,please check specifications for details

TPS22924CYZPT - TI
Manufacturer:
TI
ManyChip's Part#:
MC3143965
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
DSBGA-6
Datasheet:
Datasheet 3D Model
Description:
3.6V, 2A, 18.3mΩ Load Switch with Quick Output Discharge 6-DSBGA -40℃ to 85℃
Stock Locations:
Availability:
226 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.46

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS22924CYZPT is a small low RON Load Switch with controlled turn on. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.75 to 3.6V. An integrated charge pump biases the NMOS switch to achieve a minimum switch on resistance. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals. A 1250R on-chip load resistor is added for output quick discharge when the switch is turned off. The rise time of the device is internally controlled to avoid inrush current. The TPS22924C has a rise time of 800µs at VIN is 3.6V.
Integrated single load switch
Low shutdown current
Low threshold control input
Controlled slew rate to avoid inrush currents
Quick output discharge transistor
ESD performance tested per JESD 22
Green product and no Sb/Br
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TPS22924CYZPT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	DSBGA-6
Power Rating	810.63 mW
Number of Outputs	1 Output
Input Voltage (DC)	3.60 V
Output Current	2 A
Supply Current	0.002 mA
Number of Channels	1 Channel
Number of Positions	6 Position
Power Dissipation	0.81063 W
Quiescent Current	75.0 µA
Output Current (Max)	2 A
Output Current (Min)	2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	810.63 mW
Supply Voltage	0.75V ~ 3.6V
Input Voltage	0.75V ~ 3.6V
	Show
Size-Length	1.42 mm
Size-Width	0.918 mm
Size-Height	0.31 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
