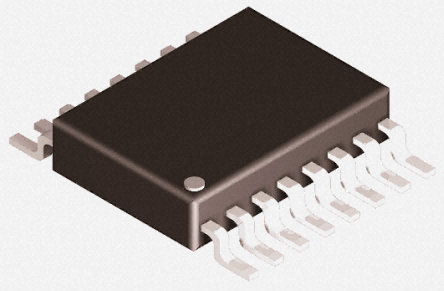

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- If your device is not located near an AC power outlet, the TPS23751PWP power over Ethernet controller from Texas Instruments can provide your devices an alternate source of energy. Use this part at voltages between 0 V and 57 V. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This POE controller has an operating temperature range of -40 °C to 85 °C. This POE controller"s maximum duty cycle is 80(Typ) %.
TPS23751PWP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | HTSSOP-16 |
| Number of Outputs | 1 Output |
| Supply Current | 1.8 mA |
| Number of Channels | 1 Channel |
| Input Voltage (Max) | 57 V |
| Input Voltage (Min) | 0 V |
| Output Voltage (Max) | 5.25 V |
| Output Voltage (Min) | 4.75 V |
| Input Power (Max) | 25.5 W |
| Input Power (Max) | 25.5 W |
| Maximum Duty Cycle | 85 % |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 0V ~ 57V |
| Show | |
| Size-Length | 5.1 mm |
| Size-Width | 4.5 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
