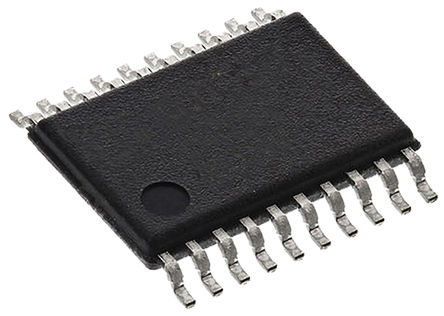

Image is for your reference only,please check specifications for details
- TPS2481PW - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC49577854
-
Category:Power Distribution
-
Package:TSSOP-20
-
Datasheet:Datasheet 3D Model
-
Description:Hot Swap Controller 1CH 80V N-Channel Positive Voltage 20Pin TSSOP Tube
-
Stock Locations:
-
Availability:270 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.34
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The TPS2480/81 are designed to minimize inrush into applications and protect both the load and the FET from over-current or short circuit events. They control an external N-channel MOSFET switch and provide accurate voltage, current, and power monitoring using a configurable 12 bit A/D converter via an I2C interface. The independently adjustable power limit and current limit ensure that the external MOSFET operates within the FET"s Safe Operating Area (SOA).
- FEATURES
- • Programmable FET Power Limit
- • External N-Channel FET Gate Drive
- • Programmable Fault Timer
- • Open Drain Power Good Output
- • I2C monitoring of Current, Voltage and Power
- • High Accuracy Current Monitoring(1% over temperature)
- • Dynamic Calibration
- • 9-V to 20-V Input Range
- APPLICATIONS
- • Servers
- • Hard Drives
- • Storage Networks
- • Base Stations
TPS2481PW Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | TSSOP-20 |
| Number of Outputs | 1 Output |
| Supply Current | 1 mA |
| Number of Channels | 1 Channel |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 9V ~ 80V |
| Supply Voltage (Max) | 20 V |
| Supply Voltage (Min) | 9 V |
| Show | |
| Size-Length | 6.6 mm |
| Size-Width | 4.5 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
