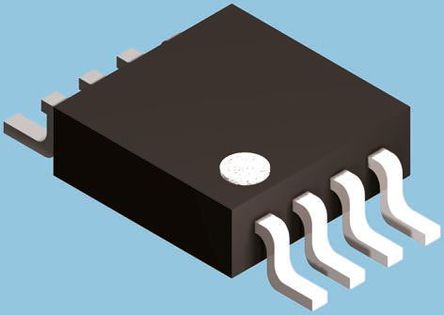

TPS386596L33DGKT - TI
Manufacturer:
TI
ManyChip's Part#:
MC22648569
Category:
Power Monitor
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:
Supervisor, Reset IC and Sequencer Quad Voltage Supervisor with Manual Reset Input Processor Supervisor 2.9V/Adj/Adj/Adj 4 Active Low/Open Drain 8Pin VSSOP T/R
Stock Locations:
Availability:
280 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.76

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS386596L33DGKT is a quad Voltage Supervisor with active-low open-drain output and manual reset input. The TPS386596 device monitors four power rails and asserts the RESET signal when any of the SENSE inputs drop below the respective thresholds. SVS-1 can be used to monitor a 3.3V nominal power supply with no external components required. SVS-2, SVS-3 and SVS-4 are adjustable using external resistors and can be used to monitor any power-supply voltage higher than 0.4V. All SENSE inputs have a threshold accuracy of 0.25% (typical). The TPS386596L33 also has an active-low manual reset (MR) that can assert the RESET signal as desired by the application.
0.25% Typical threshold accuracy
7µA Typical very low quiescent current
Green product and no Sb/Br

Show

TPS386596L33DGKT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Supply Voltage (DC)	1.80V (min)
Supply Current	7.00 µA
Number of Positions	8 Position
Quiescent Current	7.00 µA
Reset Threshold Voltage (Min)	2.87 V
Reset Threshold Voltage (Max)	2.93 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	6.5 V
Supply Voltage (Min)	1.8 V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
