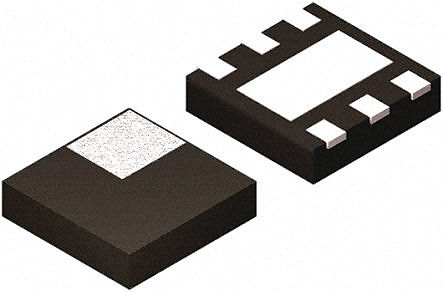

Image is for your reference only,please check specifications for details

TPS3897ADRYT - TI
Manufacturer:
TI
ManyChip's Part#:
MC5024413
Category:
Voltage Supervisor
Package:
UFDFN-6
Datasheet:
Datasheet 3D Model
Description:
Single Channel, Ultra Small, Adjustable Supervisory Circuit with Active-High, Open-Drain Output 6-SON -40℃ to 125℃
Stock Locations:
Availability:
220 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.01

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS3897ADRYT is a single-channel ultra-small adjustable Supervisory Circuit with active-high open-drain output. The very small supervisory circuit that monitor voltages greater than 500mV with a 0.25% (typical) threshold accuracy and offer adjustable delay time using external capacitors. The TPS389x family also has a logic enable pin (ENABLE or ENABLE) to power on and off the output. With the TPS3895, for example, when the input voltage pin (SENSE) rises above the threshold and the ENABLE pin is high, then the output pin (SENSE_OUT) goes high after the capacitor-adjustable delay time. When SENSE falls below the threshold or ENABLE is low, then SENSE_OUT goes low. For TPS389xA version, both SENSE and ENABLE have a capacitor-adjustable delay. The output asserts after this capacitor-adjustable delay when both SENSE and ENABLE inputs are good.
Capacitor-adjustable delay time
External enable input
Pin-for-Pin-compatible with MAX6895/6/7/8
1% Over-temperature threshold accuracy
6µA Typical low quiescent current
Green product and no Sb/Br

Show

TPS3897ADRYT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	UFDFN-6
Supply Voltage (DC)	1.70V (min)
Number of Positions	6 Position
Quiescent Current	6.00 µA
Threshold Voltage	Adjustable
Reset Threshold Voltage (Min)	Adjustable
Reset Threshold Voltage (Max)	Adjustable
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	1 %
Supply Voltage (Max)	6.5 V
Supply Voltage (Min)	1.7 V
	Show
Size-Length	1.5 mm
Size-Width	1.05 mm
Size-Height	0.55 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
