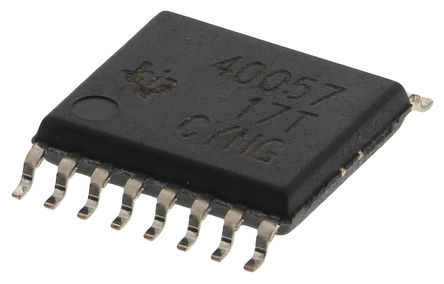

TPS40057PWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC1421000
Category:
DC to DC Converter
Package:
HTSSOP-16
Datasheet:
Datasheet 3D Model
Description:
DC-DC Controller (External Switch) Wide Input (8V-40V) up to 1MHz Frequency Synchronous Buck Controller, source/sink with prebias DC-DC Cntrlr Single-OUT Step Down 1000kHz 16Pin HTSSOP EP Tube
Stock Locations:
Availability:
550 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.13

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Make your circuit work correctly with the synchronous buck TPS40057PWP DC voltage controller from Texas Instruments. With an output that has a voltage of 0.7 to 35 V, this is power management at its best. This DC voltage controller has single output. This DC voltage controller has an input voltage of 8 to 40 V. You can operate this at a switching frequency of 1000 kHz. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 85 °C.

Show

TPS40057PWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	HTSSOP-16
Supply Voltage (DC)	8.00V (min)
Number of Outputs	1 Output
Output Voltage	0.7V ~ 35V
Output Current	20.0 A
Quiescent Current	1.50 mA
Number of Regulated Outputs	1 Output
Switching Frequency	1MHz (MAX)
Thermal Shutdown	Yes
Topology	Buck
Duty Cycle	94 %
Input Voltage (Max)	40 V
Input Voltage (Min)	8 V
Output Voltage (Max)	6 V
Maximum Duty Cycle	0.94
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	8V ~ 40V
Supply Voltage (Max)	40 V
Supply Voltage (Min)	8 V
Input Voltage	8V ~ 40V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR
