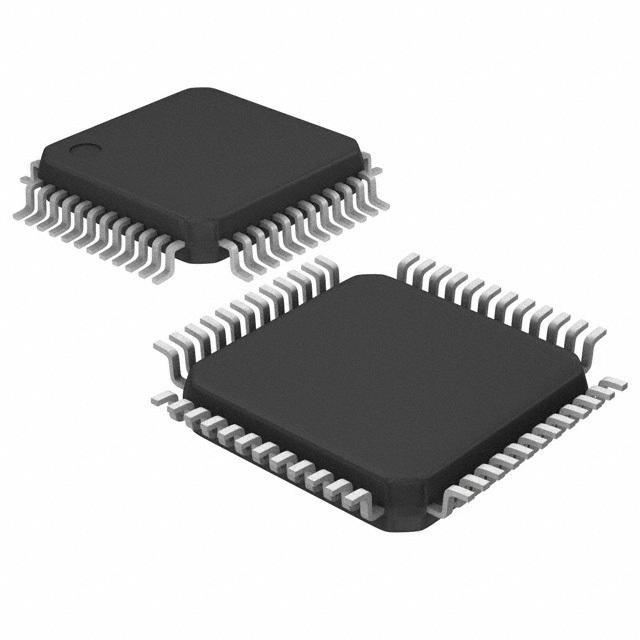

TPS5130PTR - TI
Manufacturer:
TI
ManyChip's Part#:
MC3940668
Category:
Voltage Regulator
Package:
LQFP-48
Datasheet:
Datasheet 3D Model
Description:
DC-DC Controller (External Switch) Triple Synchronous Buck Controller with LDO Controller DC-DC Cntrlr Triple-OUT Step Down 500kHz 48Pin LQFP T/R
Stock Locations:
Availability:
262 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.37

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Looking for a step up or step down in voltage within a DC circuit, look no further: this synchronous buck TPS5130PTR DC voltage controller from Texas Instruments will adjust the voltage properly. With an output that has a voltage of 0.9 to 5.5 V, this is power management at its best. This DC voltage controller has 3 outputs. This DC voltage controller has an input voltage of 4.5 to 28 V. You can operate this at a switching frequency of 500 kHz. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 85 °C.

Show

TPS5130PTR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	LQFP-48
Supply Voltage (DC)	28.0 V
Number of Outputs	4 Output
Output Voltage	0.9V ~ 5.5V
Output Current	15.0 A
Power Dissipation	3210 mW
Quiescent Current	2.00 mA
Number of Regulated Outputs	4 Output
Switching Frequency	300 kHz
Thermal Shutdown	No
Topology	Buck
Input Voltage (Max)	28 V
Input Voltage (Min)	4.5 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	3210 mW
Supply Voltage	1.1V ~ 28V
Input Voltage	4.5V ~ 28V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
