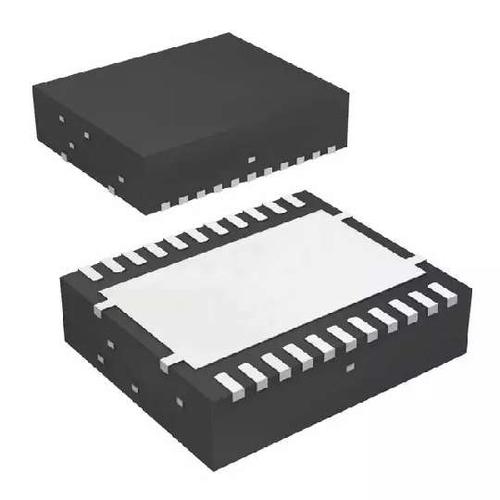

Image is for your reference only,please check specifications for details
- TPS53318DQPR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC1414919
-
Category:DC to DC Converter
-
Package:LFDFN-22
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 4.5V to 25V Step Down Single-Out 0.6V to 5.5V 8A 22Pin SON EP T/R
-
Stock Locations:
-
Availability:1,299 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.63
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS53318 and TPS53319 devices are D-CAP mode, 8-A or 14-A synchronous switchers with integrated MOSFETs. They are designed for ease of use, low external component count, and space-conscious power systems.
- These devices feature accurate 1%, 0.6-V reference, and integrated boost switch. A sample of competitive features include: 1.5-V to 22-V wide conversion input voltage range, very low external component count, D-CAP™ mode control for super fast transient, auto-skip mode operation, internal soft-start control, selectable frequency, and no need for compensation.
- The conversion input voltage ranges from 1.5 V to 22 V, the supply voltage range is from 4.5 V to 25 V, and the output voltage range is from 0.6 V to 5.5 V.
- These devices are available in 5 mm x 6 mm, 22-pin QFN package and is specified from –40°C to 85°C.
TPS53318DQPR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 22 Pin |
| Case/Package | LFDFN-22 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.6V ~ 5.5V |
| Output Current | 8 A |
| Quiescent Current | 320 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 250kHz ~ 1MHz |
| Topology | Buck |
| Input Voltage (Max) | 22 V |
| Input Voltage (Min) | 1.5 V |
| Output Voltage (Max) | 5.5 V |
| Output Voltage (Min) | 0.6 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Input Voltage | 1.5V ~ 22V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
