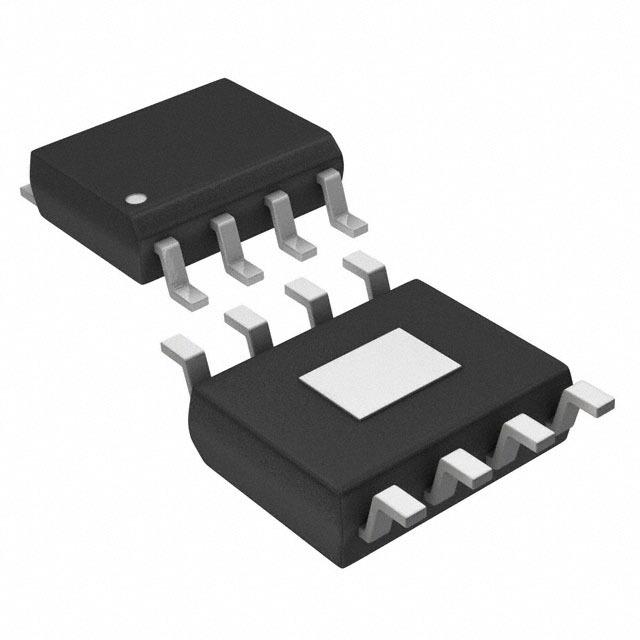

Image is for your reference only,please check specifications for details
- TPS5430MDDAREP - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC6504023
-
Category:DC to DC Converter
-
Package:HSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 5.5V to 36V Step Down Single-Out 1.22V to 31V 3A 8Pin HSOP EP T/R
-
Stock Locations:
-
Availability:282 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.78
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- As a member of the SWIFT family of dc/dc regulators, the TPS5430 is a high-output-current pulse-width modulation (PWM) converter that integrates a low-resistance high-side N-channel MOSFET. Included on the substrate with the listed features are a high-performance voltage error amplifier that provides tight voltage regulation accuracy under transient conditions, an undervoltage lockout (UVLO) circuit to prevent start-up until the input voltage reaches 5.5 V, an internally set slow-start circuit to limit inrush currents, and a voltage feed-forward circuit to improve the transient response. Using the enable (ENA) pin, shutdown supply current is reduced to 18 µA typically. Other features include an active-high enable, overcurrent limiting, overvoltage protection (OVP) and thermal shutdown. To reduce design complexity and external component count, the TPS5430 feedback loop is internally compensated. The TPS5430 regulates a wide variety of power sources including 24-V buses.
- The TPS5430 device is available in a thermally enhanced, easy-to-use 8-pin SOIC PowerPAD package. TI provides evaluation modules and the SWIFT Designer software tool to aid in quickly achieving high-performance power supply designs to meet aggressive equipment development cycles.
TPS5430MDDAREP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | HSOP-8 |
| Number of Outputs | 1 Output |
| Output Voltage | 1.22V ~ 31V |
| Output Current | 3 A |
| Quiescent Current | 3.00 mA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 500 kHz |
| Thermal Shutdown | Yes |
| Topology | Buck |
| Input Voltage (Max) | 36 V |
| Input Voltage (Min) | 5.5 V |
| Output Voltage (Max) | 32.04 V |
| Output Voltage (Min) | 1.221 V |
| Output Current (Max) | 3 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Input Voltage | 5.5V ~ 36V |
| Show | |
| Size-Height | 1.55 mm |
| Operating Temperature | -55℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
