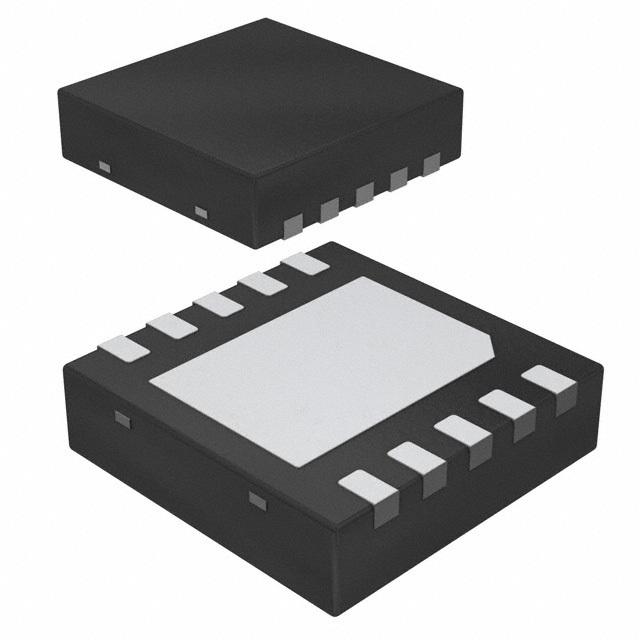

- TPS54361DPRT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC14974163
-
Category:Voltage Regulator
-
Package:WSON-10
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 4.5V to 60V Step Down Single-Out 0.8V to 59V 3.5A 10Pin WSON EP T/R
-
Stock Locations:
-
Availability:244 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.36
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS54361DPRT is a 3.5A Step-down DC-DC Converter with soft-start and Eco-mode™. The device survives load dump pulses up to 65V per ISO 7637. Current-mode control provides simple external compensation and flexible component selection. A low-ripple pulse-skip mode reduces the no-load supply current to 152µA. Shutdown supply current is reduced to 2µA when the enable pin is pulled low. Under-voltage lockout is internally set at 4.3V but can increase using an external resistor-divider at the enable pin. The output voltage start-up ramp is controlled by the soft-start pin that can also be configured for sequencing and tracking. An open-drain power-good signal indicates the output is within 93 to 106% of the nominal voltage. A wide adjustable switching frequency range allows for optimization of either efficiency or external component size. Cycle-by-cycle current limit, frequency foldback and thermal shutdown protect internal and external components during an overload condition.
- High efficiency at light loads with a pulse-skipping Eco-mode™
- 89mR High-side MOSFET
- 152µA Operating quiescent current and 2µA shutdown current
- 100kHz to 2.5MHz Adjustable switching frequency
- Synchronizes to external clock
- Low dropout at light loads with integrated BOOT recharge FET
- Adjustable UVLO voltage and hysteresis
- UV and OV power-good output
- Adjustable soft start and sequencing
- 0.8V 1% Internal voltage reference
- Green product and no Sb/Br
- IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
TPS54361DPRT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | WSON-10 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.8V ~ 59V |
| Output Current | 3.5 A |
| Number of Positions | 10 Position |
| Quiescent Current | 152 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 2.5 MHz |
| Topology | Buck |
| Switching Current | 5.5 A |
| Input Voltage (Max) | 60 V |
| Input Voltage (Min) | 4.5 V |
| Output Voltage (Max) | 59 V |
| Output Voltage (Min) | 800 mV |
| Output Current (Max) | 3.5 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 60 V |
| Show | |
| Size-Height | 0.75 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
