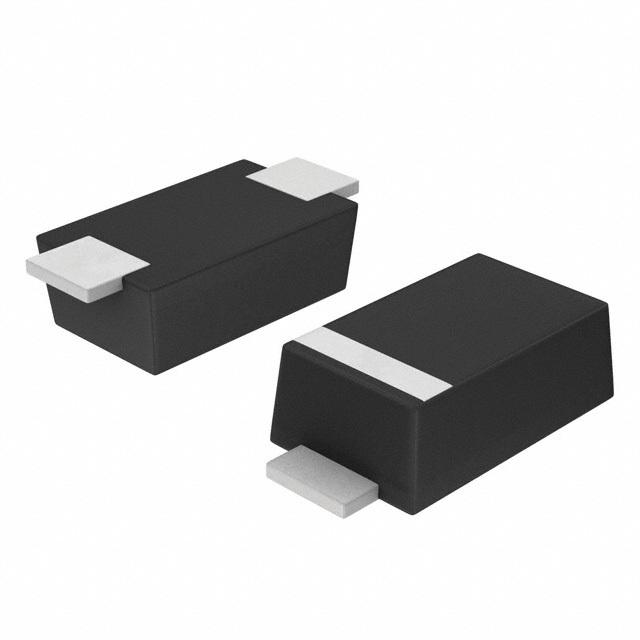

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NRVB120VLSFT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123FL
Number of Positions	2 Position
Forward Voltage	300mV @1A
Forward Current	1000 mA
Max Forward Surge Current (Ifsm)	45 A
Maximum Forward Voltage (Max)	340 mV
Forward Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-65 ℃
	Show
Operating Temperature	-65℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
