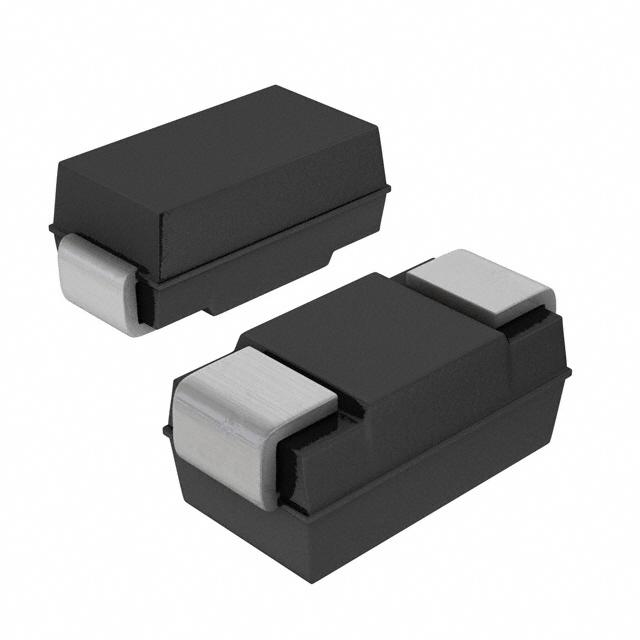

Image is for your reference only,please check specifications for details

RF201L2STE25 - ROHM Semiconductor
Manufacturer:
ROHM Semiconductor
ManyChip's Part#:
MC18818733
Category:
TVS Diode
Package:
DO-214AC
Datasheet:
Datasheet 3D Model
Description:
ROHM RF201L2STE25 Fast / Ultrafast Diode, 200V, 2A, Single, 870mV, 25ns, 20A
Stock Locations:
Availability:
905 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.18

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The RF201L2STE25 is a silicon epitaxial planer Fast-recovery Diode for general rectification application.
Small power mould type (PMDS)
Ultra low VF
Ultra-high switching speed
Low switching loss

Show

RF201L2STE25 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AC
Forward Voltage	870mV @2A
Reverse recovery time	25 ns
Forward Current	2 A
Max Forward Surge Current (Ifsm)	20 A
Maximum Forward Voltage (Max)	870 mV
Forward Current (Max)	2000 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	150℃ (Max)
Junction Temperature (Max)	150 ℃
	Show
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
