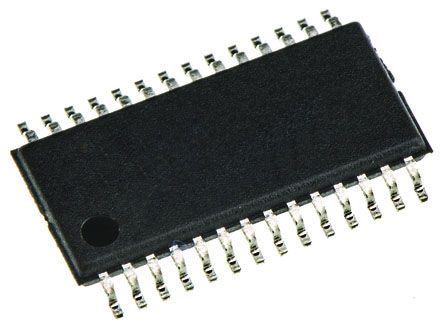

Image is for your reference only,please check specifications for details

TPS54612PWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC25795774
Category:
Voltage Regulator
Package:
HTSSOP-28
Datasheet:
Datasheet 3D Model
Description:
Step-Down Regulator 3V to 6V, 6A Synchronous Step Down SWIFT Converter with 1.2V Output Conv DC-DC 3V to 6V Step Down Single-Out 1.2V 6A 28Pin HTSSOP EP Tube
Stock Locations:
Availability:
210 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.69

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS54612PWP is a SWIFT™ step-down PWM synchronous Buck Converter integrate all required active components. Included on the substrate are true, high-performance, voltage error amplifiers that provide high performance under transient conditions, an under-voltage-lockout circuit to prevent start-up until the input voltage reaches 3V, an internally and externally set slow-start circuit to limit in-rush currents and a powergood output useful for processor/logic reset, fault signalling and supply sequencing. It incorporates an UVLO circuit to keep the device disabled when the input voltage (VIN) is insufficient. During power up, internal circuits are held inactive until VIN exceeds the nominal UVLO threshold voltage of 2.95V. Once the UVLO start threshold is reached, device start-up begins. The device operates until VIN falls below the nominal UVLO stop threshold of 2.8V.
Internally compensated for easy use and minimal component count
Fast transient response
Load protected by peak current limit and thermal shutdown
Integrated solution reduces board area
Green product and no Sb/Br

Show

TPS54612PWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	HTSSOP-28
Frequency	700 kHz
Number of Outputs	1 Output
Output Voltage	1.2 V
Output Current	6 A
Number of Positions	28 Position
Drain to Source Resistance (on) (Rds)	85 mΩ
Quiescent Current	11.0 mA
Number of Regulated Outputs	1 Output
Switching Frequency	550 kHz
Thermal Shutdown	Yes
Topology	Buck
Input Voltage (Max)	6 V
Input Voltage (Min)	3 V
Output Voltage (Min)	1.2 V
Output Current (Max)	6 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	1 %
Supply Voltage	3 V
Supply Voltage (Min)	3 V
Input Voltage	3V ~ 6V
	Show
Size-Length	9.7 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
