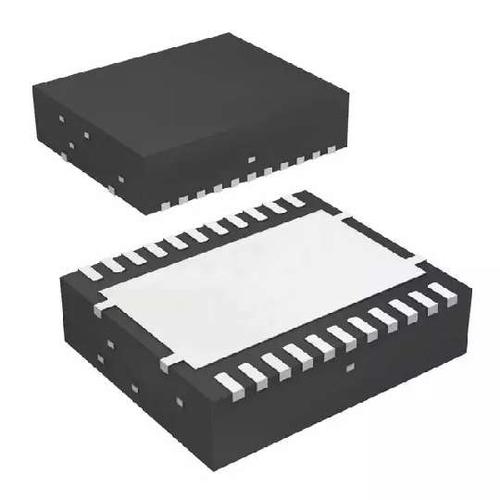

- TPS56121DQPR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC5899633
-
Category:DC to DC Converter
-
Package:SON-22
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 4.5V to 14V Step Down Single-Out 0.6V to 12V 15A 22Pin SON EP T/R
-
Stock Locations:
-
Availability:412 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.9
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Adjust the voltage level of your devices with this step down TPS56121DQPR DC to DC converter from Texas Instruments. This converter"s single output can produce a current up to 15 A. Use this part at voltages between 4.5 V and 14 V. With an adjustable output that has a voltage of 0.6 to 12 V, this is power management at its best. Using a load regulation of 0.5% and line regulation of 0.5% is needed for a programmable DC power supply. This converter is 90(typ) % efficient. It has a switching frequency of 1000 kHz. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
TPS56121DQPR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 22 Pin |
| Case/Package | SON-22 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.6V ~ 12V |
| Output Current | 15 A |
| Number of Positions | 22 Position |
| Quiescent Current | 2.50 mA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 1000 kHz |
| Topology | Buck |
| Input Voltage (Max) | 14 V |
| Input Voltage (Min) | 4.5 V |
| Output Voltage (Max) | 13.02 V |
| Output Voltage (Min) | 0.6 V |
| Output Current (Max) | 15 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 4.5V ~ 14V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Contains Lead |
