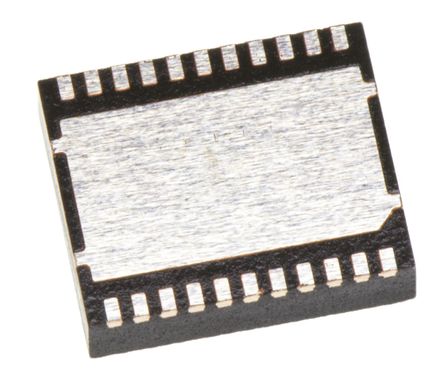

Image is for your reference only,please check specifications for details

TPS56121DQPT - TI
Manufacturer:
TI
ManyChip's Part#:
MC2788668
Category:
DC to DC Converter
Package:
QFN-22
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 4.5V to 14V Step Down Single-Out 0.6V to 12V 15A 22Pin SON EP T/R
Stock Locations:
Availability:
307 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 36.17

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS56121DQPT is a high-efficiency and high-current synchronous Buck Converter designed to operate from a supply of 4.5 to 14V. The device can produce an output voltage as low as 0.6V at loads up to 15A. Integrated NexFET™ power MOSFETs provide a small footprint and ease of use. The device implements a voltage-mode control with voltage feed-forward compensation that responds instantly to input voltage change. The device offers design flexibility with a variety of user programmable functions, including soft-start, overcurrent protection (OCP) levels and loop compensation. OCP levels are programmed by a single external resistor connected from the ILIM pin to the circuit ground. During the initial power-ON sequence, the device enters a calibration cycle, measures the voltage at the ILIM pin and sets an internal OCP voltage level.
Incorporates power block technology
High-side and low-side MOSFET RDS(on) sensing
Programmable soft-start
Voltage mode control with feed-forward
Supports pre-biased output
Thermal shutdown
600mV Reference voltage with 1% accuracy

Show

TPS56121DQPT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	22 Pin
Case/Package	QFN-22
Number of Outputs	1 Output
Output Voltage	0.6V ~ 12V
Output Current	15 A
Number of Positions	22 Position
Quiescent Current	2.5 mA
Number of Regulated Outputs	1 Output
Switching Frequency	1.1 MHz
Topology	Buck
Input Voltage (Max)	14 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	12 V
Output Voltage (Min)	600 mV
Output Current (Max)	15 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5 V
Input Voltage	4.5V ~ 14V
	Show
Size-Length	6.1 mm
Size-Width	5.1 mm
Size-Height	1.45 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
