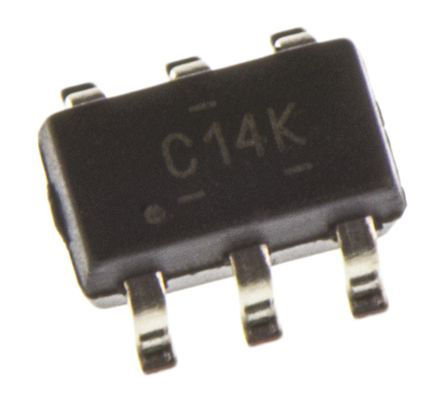

Image is for your reference only,please check specifications for details

TPS563209DDCT - TI
Manufacturer:
TI
ManyChip's Part#:
MC8433600
Category:
DC to DC Converter
Package:
TSOT-23-6
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 4.5V to 17V Step Down Single-Out 0.76V to 7V 3A 6Pin TSOT-23 T/R
Stock Locations:
Availability:
135 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.64

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS563209DDCT is a 3A Synchronous Step-down Regulator optimized to operate with minimum external component counts and also optimized to achieve low standby current. This switch mode power supply (SMPS) device employs D-CAP2™ mode control providing a fast transient response and supporting both low equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors with no external compensation components. The TPS563209 always operates in continuous conduction mode, which reduces the output ripple voltage in light load compared to discontinuous conduction mode. It has an internal 1.0ms soft-start. When the EN pin becomes high, the internal soft-start function begins ramping up the reference voltage to the PWM comparator. This regulator detects over voltage condition by monitoring the feedback voltage (VFB).
3A Converter with integrated 68mR and 39mR FET
D-CAP2 mode control for fast transient response
Low shutdown current (less than 10µA)
1% Feedback voltage accuracy (25°C)
Start-up from pre-biased output voltage
Cycle-by-cycle over-current limit
Hiccup-mode under-voltage protection
Non-latch OVP, UVLO and TSD protections
Fixed soft start (1.0ms)
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TPS563209DDCT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOT-23-6
Number of Outputs	1 Output
Output Voltage	0.76V ~ 7V
Output Current	3 A
Number of Positions	6 Position
Quiescent Current	650 µA
Number of Regulated Outputs	1 Output
Switching Frequency	650 kHz
Topology	Buck
Switching Current	4.2 A
Input Voltage (Max)	17 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	7 V
Output Voltage (Min)	760 mV
Output Current (Max)	3 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Min)	4.5 V
Input Voltage	17 V
	Show
Size-Length	3.05 mm
Size-Width	1.75 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
