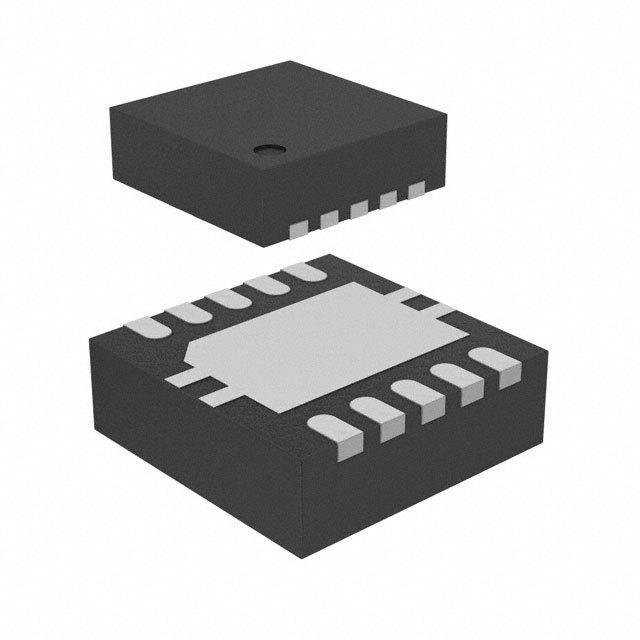

Image is for your reference only,please check specifications for details

BQ24085DRCR - TI
Manufacturer:
TI
ManyChip's Part#:
MC12105210
Category:
Battery Management IC
Package:
VSON-10
Datasheet:
Datasheet 3D Model
Description:
Battery Charger for 1 Cell of Li-Ion, Li-Pol battery, 6.5V input, 4.2V/750mA charge, SON-10
Stock Locations:
Availability:
250 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.59

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The bq24085/6/7/8 series are highly integrated Li-Ion and Li-Pol linear chargers, targeted at space-limited portable applications. The bq24085/6/7/8 series offers a variety of safety features and functional options, while still implementing a complete charging system in a small package. The battery is charged in three phases: conditioning, constant or thermally regulated current, and constant voltage. Charge is terminated based on minimum current.
FEATURES
• Ideal for Low-Dropout Designs for Single-Cell Li-Ion or Li-Pol Packs in Space Limited Applications
• Integrated Power FET and Current Sensor for up to 750-mA Charge Applications
• Reverse Leakage Protection Prevents Battery Drainage
• ±0.5% Voltage Regulation Accuracy
• Thermal Regulation Maximizes Charge Rate
• Charge Termination by Minimum Current and Time
• Precharge Conditioning With Safety Timer
• Status Outputs for LED or System Interface Indicate Charge, Fault, and Power Good Outputs
• Short-Circuit and Thermal Protection
• Automatic Sleep Mode for Low Power Consumption
• Small 3×3 mm MLP Package
• Selectable Battery Insertion and Battery Absent Detection
• Input Overvoltage Protection
– 6.5 V and 10.5 V Options
APPLICATIONS
• PDA, MP3 Players, Digital Cameras
• Internet Appliances and Handheld Devices
