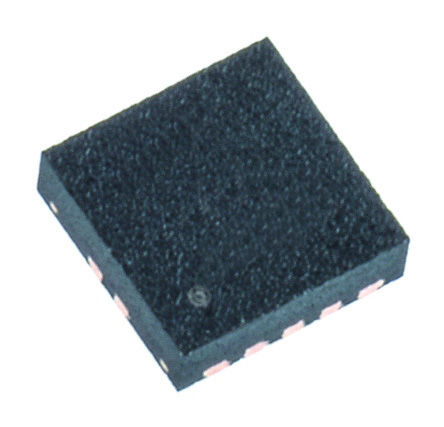

Image is for your reference only,please check specifications for details

TPS61025DRCR - TI
Manufacturer:
TI
ManyChip's Part#:
MC430078
Category:
DC to DC Converter
Package:
VSON-10
Datasheet:
Datasheet 3D Model
Description:
Step-Up Regulator 3.3V Output, 1.5A Switch, 96% Efficient Boost Converter w/ LDO Down-Mode, QFN-10 Conv DC-DC Single Step Up 0.9V to 6.5V 10Pin VSON EP T/R
Stock Locations:
Availability:
129 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.95

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS61025DRCR is a Boost Converter with LDO down-mode. It provides a power supply solution for products powered by either one-cell, two-cell or three-cell alkaline, NiCd or NiMH or one-cell li-ion or li-polymer battery. Output currents can go as high as 200mA while using a single-cell alkaline battery and discharge it down to 0.9V. The device can also be used for generating 5V at 500mA from a 3.3V rail or a li-ion battery. The boost converter is based on a fixed-frequency, pulse width modulation (PWM) controller using a synchronous rectifier to obtain maximum efficiency. At low load currents the converter enters the power save mode to maintain a high efficiency over a wide-load current range. The Power Save mode can be disabled, forcing the converter to operate at a fixed switching frequency. It keeps the output voltage regulated even when the input voltage exceeds the nominal output voltage.
Output voltage remains regulated when input voltage exceeds nominal output voltage
Power save mode for improved efficiency at low output power
Low battery comparator
Low EMI-converter (integrated anti-ringing switch)
Load disconnect during shutdown
Overtemperature protection
96% Efficient synchronous boost converter
Green product and no Sb/Br

Show

TPS61025DRCR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	VSON-10
Frequency	720 kHz
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	1.5 A
Number of Positions	10 Position
Quiescent Current	25.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	600 kHz
Topology	Boost
Input Voltage (Max)	6.5 V
Input Voltage (Min)	0.9 V
Output Voltage (Min)	3.3 V
Output Current (Max)	1.2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	0.9 V
Input Voltage	0.9V ~ 6.5V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
