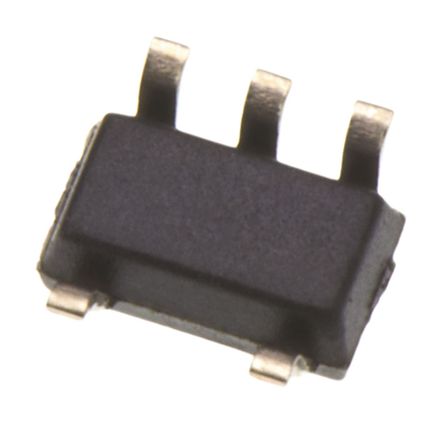

TPS61040DBVR - TI
Manufacturer:
TI
ManyChip's Part#:
MC181234
Category:
DC to DC Converter
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
28V, 400mA Switch Boost Converter in SOT-23 for LCD and White LED Applications 5-SOT-23 -40℃ to 85℃
Stock Locations:
Availability:
10,450 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.26

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS61040DBVR is a 400mA Switch High Frequency Boost Converter dedicated for small to medium LCD bias supply and white LED backlight supplies. The device is ideal to generate output voltages up to 28V from a dual-cell NiMH/NiCd or a single-cell Li-ion battery. The part can also be used to generate standard 3.3 or 5 to 12V power conversions. The TPS61040 operates with a switching frequency up to 1MHz. This frequency allows the use of small external components using ceramic as well as tantalum output capacitors. This device has an internal 400mA switch current limit, offering lower output voltage ripple and allows the use of a smaller form factor inductor for lower power applications. The low quiescent current (typically 28µA) together with an optimized control scheme, allows device operation at very high efficiencies over the entire load current range.
Adjustable output voltage range up to 28V
400mA Internal switch current
28µA Typical no-load quiescent current
1µA Typical shutdown current
Internal soft start
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TPS61040DBVR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Frequency	1 MHz
Supply Voltage (DC)	1.80V (min)
Current Rating	28.0 mA
Number of Outputs	1 Output
Output Voltage	28 V
Output Current	400 mA
Number of Positions	5 Position
Quiescent Current	28.0 µA
Number of Regulated Outputs	1 Output
Output Power	357 mW
Switching Frequency	1 MHz
Topology	Boost
Input Voltage (Max)	6 V
Input Voltage (Min)	1.8 V
Output Voltage (Max)	28 V
Output Voltage (Min)	1.8 V
Output Current (Max)	90 mA
Output Current (Min)	350 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.8 V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	1.8 V
Input Voltage	1.8V ~ 5.5V
	Show
Size-Length	3.05 mm
Size-Width	1.6 mm
Size-Height	1.3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
