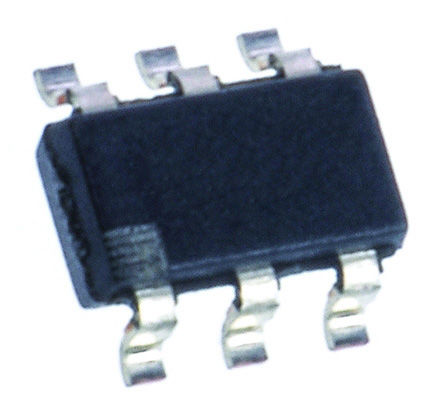

TPS61071DDCR - TI
Manufacturer:
TI
ManyChip's Part#:
MC3539871
Category:
DC to DC Converter
Package:
TSOT-23-6
Datasheet:
Datasheet 3D Model
Description:
Step-Up Regulator Adjustable, 600mA Switch, 90% Efficient PWM Boost Converter in ThinSOT-23 Conv DC-DC 0.9V to 5.5V Step Up Single-Out 1.8V to 5.5V 0.15A 6Pin TSOT-23 T/R
Stock Locations:
Availability:
1,837 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.6

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS61071DDCR is a synchronous Boost Converter with for use with 600mA switch. The TPS6107x device provides a power supply solution for products powered by either one-cell, two-cell or three-cell alkaline, NiCd/NiMH or one-cell Li-ion/Li-polymer battery. Output current can go as high as 75mA while using a single-cell alkaline and discharge it down to 0.9V. It can also be used for generating 5V at 200mA from a 3.3V rail or a Li-ion battery. The boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using a synchronous rectifier to obtain maximum efficiency. The power-save mode is disabled in the TPS61071, forcing the converters to operate at a fixed switching frequency. The TPS6107x output voltage is programmed by an external resistor divider. The converter can be disabled to minimize battery drain. During shutdown, the load is completely disconnected from the battery.
Power-save mode version available for improved efficiency at low output power
Load disconnect during shutdown
Over-temperature protection
90% Efficiency
19µA Typical quiescent current
Green product and no Sb/Br

Show

TPS61071DDCR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOT-23-6
Supply Voltage (DC)	5.50V (max)
Number of Outputs	1 Output
Output Voltage	1.8V ~ 5.5V
Output Current	600 mA
Number of Positions	6 Position
Quiescent Current	19.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	1.2 MHz
Topology	Boost
Input Voltage (Max)	5.5 V
Input Voltage (Min)	0.9 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	1.8 V
Output Current (Max)	150 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	0.9 V
Input Voltage	0.9V ~ 5.5V
	Show
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	0.87 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR
