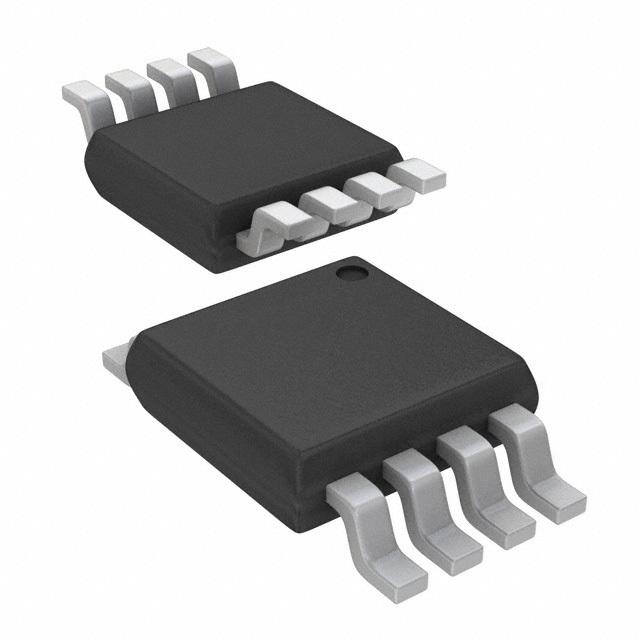

Image is for your reference only,please check specifications for details
- TPS61085DGKR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC1760671
-
Category:DC to DC Converter
-
Package:VSSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:Step-Up Regulator 18.5V, 2A, 650kHz / 1.2MHz Step-Up DC-DC Converter w/ Forced PWM Mode Conv DC-DC 2.3V to 6V Step Up Single-Out 2.8V to 18.5V 2A 8Pin VSSOP T/R
-
Stock Locations:
-
Availability:1,515 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.78
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS61085 is a high frequency, high efficiency DC-DC converter with an integrated 2.0-A, 0.13-Ω power switch capable of providing an output voltage up to 18.5 V. The selectable frequency of 650 kHz or 1.2 MHz allows the use of small external inductors and capacitors and provides fast transient response. The external compensation allows optimizing the application for specific conditions. A capacitor connected to the soft-start pin minimizes inrush current at startup.
TPS61085DGKR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | VSSOP-8 |
| Number of Outputs | 1 Output |
| Output Voltage | 2.8V ~ 18.5V |
| Output Current | 2 A |
| Number of Positions | 8 Position |
| Quiescent Current | 70.0 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 650kHz, 1.2MHz |
| Topology | Boost |
| Input Voltage (Max) | 6 V |
| Input Voltage (Min) | 2.3 V |
| Output Voltage (Max) | 18.5 V |
| Output Voltage (Min) | 2.8 V |
| Output Current (Max) | 2 a |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.3 V |
| Input Voltage | 2.3V ~ 6V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
