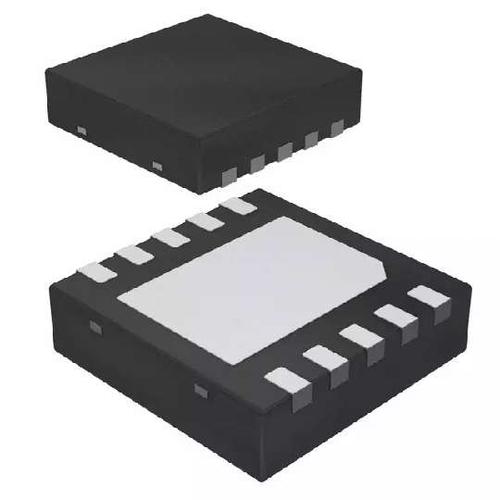

Image is for your reference only,please check specifications for details
- TPS61087DSCR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC14082708
-
Category:DC to DC Converter
-
Package:WFDFN-10
-
Datasheet:Datasheet 3D Model
-
Description:Повышающий регулятор, 18,5 В, 3,2 А, 650 кГц / 1,2 МГц, повышающий DC-DC преобразователь с принудительным режимом ШИМ. DC-DC преобразователь, один канал, неинвертирующий/инвертирующий/повышающий/понижающий, от 2,5 В до 6 В, 10-выводной WSON EP, лента и катушка
-
Stock Locations:
-
Availability:275 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.05
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- TPS61087 — это высокочастотный высокоэффективный преобразователь постоянного тока в постоянный ток с интегрированным силовым ключом на 3,2 А с сопротивлением 0,13 Ом, способный обеспечивать выходное напряжение до 18,5 В. Выбираемая частота переключения 650 кГц или 1,2 МГц позволяет использовать компактные внешние индуктивности и конденсаторы, а также обеспечивает быстрый отклик на переходные процессы. Внешняя компенсация позволяет оптимизировать устройство для конкретных условий эксплуатации. Конденсатор, подключённый к выводу мягкого пуска, минимизирует токи броска при запуске.
TPS61087DSCR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | WFDFN-10 |
| Number of Outputs | 1 Output |
| Output Voltage | 3V ~ 18.5V |
| Output Current | 3.2 A |
| Quiescent Current | 75.0 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 650kHz, 1.2MHz |
| Topology | Boost |
| Input Voltage (Max) | 6 V |
| Input Voltage (Min) | 2.5 V |
| Output Voltage (Max) | 18.5 V |
| Output Voltage (Min) | 3 V |
| Output Current (Max) | 3.2 A |
| Supply Voltage | 2.5V ~ 6V |
| Input Voltage | 2.5V ~ 6V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
