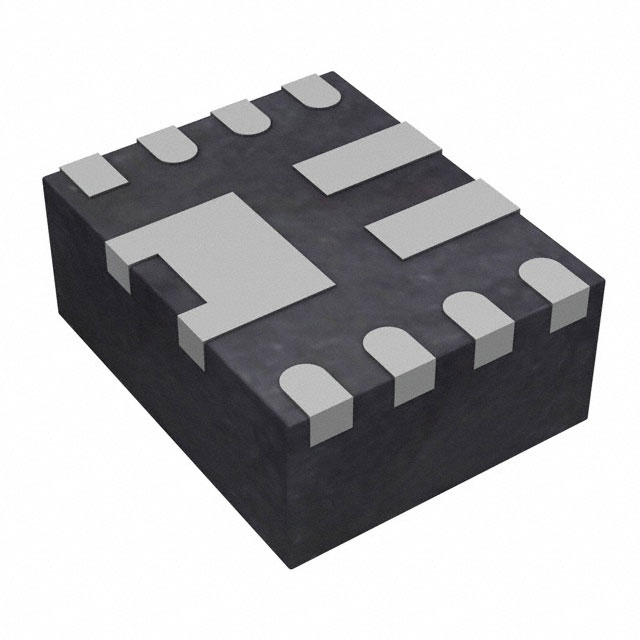

Image is for your reference only,please check specifications for details
- TPS61089RNRR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC1889373
-
Category:DC to DC Converter
-
Package:VQFN-11
-
Datasheet:Datasheet 3D Model
-
Description:Switching Voltage Regulators 12.6V, 7A Fully-Integrated Synchronous Boost Converters in 2mm x 2.5mm VQFN Package 11-VQFN-HR -40℃ to 85℃
-
Stock Locations:
-
Availability:1,783 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.3
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS61089x represents the TPS61089 and the TPS610891. The TPS61089x is a fully-integrated synchronous boost converter with a 19-mΩ main power switch and a 27-mΩ rectifier switch. The device provides a high efficiency and small size power solution for portable equipment. The TPS61089x features wide input voltage range from 2.7 V to 12 V to support applications powered with single cell or two cell Lithium ion/polymer batteries. The TPS61089x has 7-A continuous switch current capability and provides output voltage up to 12.6 V.
- The TPS61089x uses adaptive constant off-time peak current control topology to regulate the output voltage. In moderate to heavy load condition, the TPS61089x works in the pulse width modulation (PWM) mode. In light load condition, the TPS61089 works in the pulse frequency modulation (PFM) mode to improve the efficiency, while the TPS610891 still works in the PWM mode to avoid application problems caused by low switching frequency. The switching frequency in the PWM mode is adjustable from 200 kHz to 2.2 MHz. The TPS61089x also implements a built-in 4-ms soft start function and an adjustable peak switch current limit function. In addition, the device provides 13.2-V output overvoltage protection, cycle-by-cycle overcurrent protection, and thermal shutdown protection.
- The TPS61089x is available in an extremely compact size of a 2.0-mm × 2.5-mm 11-pin VQFN package.
TPS61089RNRR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 11 Pin |
| Case/Package | VQFN-11 |
| Number of Outputs | 1 Output |
| Output Voltage | 4.5V ~ 12.6V |
| Output Current | 7 A |
| Quiescent Current | 10.0 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 200kHz ~ 2.2MHz |
| Topology | Boost |
| Input Voltage (Max) | 12 V |
| Input Voltage (Min) | 2.7 V |
| Output Voltage (Max) | 12.6 V |
| Output Voltage (Min) | 4.5 V |
| Output Current (Max) | 7 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 2.7V ~ 12V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
