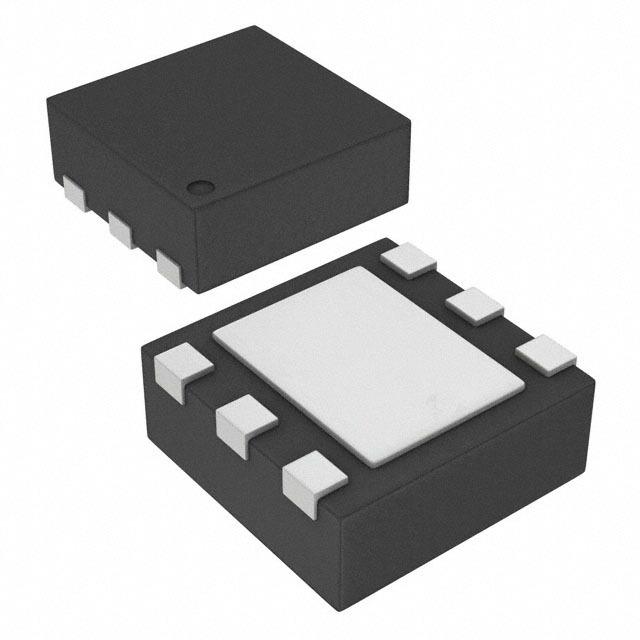

TPS61170QDRVRQ1 - TI
Manufacturer:
TI
ManyChip's Part#:
MC5632233
Category:
DC to DC Converter
Package:
QFN-6
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 3V to 18V Step Up Single-Out 3V to 38V 1.2A Automotive 6Pin WSON EP T/R
Stock Locations:
Availability:
72 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.35

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS61170QDRVRQ1 is a monolithic high-voltage Switching Regulator with integrated 1.2A/40V power MOSFET. The device can be configured in several standard switching-regulator topologies, including boost and SEPIC. The device has a wide input-voltage range to support applications with input voltage from multicell batteries or regulated 5/12V power rails. The TPS61170-Q1 operates at a 1.2MHz switching frequency, allowing the use of low-profile inductors and low-value ceramic input and output capacitors. External loop compensation components give the user flexibility to optimize loop compensation and transient response. The device has built-in protection features, such as pulse-by-pulse overcurrent limit, soft-start and thermal shutdown. The FB pin regulates to a reference voltage of 1.229V. The reference voltage can be lowered using a 1-wire digital interface (EasyScale™ protocol) through the CTRL pin. Alternatively, a pulse width-modulation (PWM) signal can be applied to the CTR
On the fly output voltage reprogramming
Skip-switching cycle for output regulation at light load
Built-in soft-start
Up to 93% efficiency
12V at 300mA and 24V at 150mA from 5V Input (typical)
Green product and no Sb/Br

Show

TPS61170QDRVRQ1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	QFN-6
Number of Outputs	1 Output
Output Voltage	3V ~ 38V
Output Current	1.2 A
Number of Positions	6 Position
Quiescent Current	2.30 mA
Number of Regulated Outputs	1 Output
Switching Frequency	1.2 MHz
Topology	Boost
Input Voltage (Max)	18 V
Input Voltage (Min)	3 V
Output Voltage (Max)	38 V
Output Voltage (Min)	3 V
Output Current (Max)	1.2 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3 V
Input Voltage	3V ~ 18V
	Show
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
