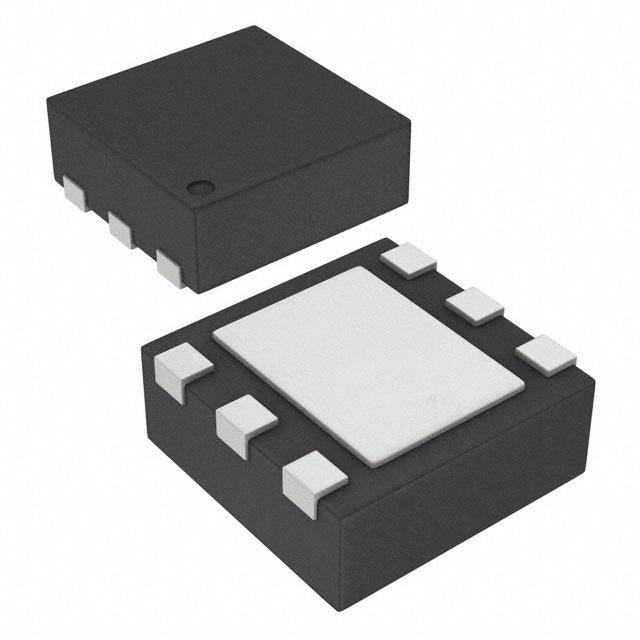

Image is for your reference only,please check specifications for details
- TPS61261DRVR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC49044703
-
Category:DC to DC Converter
-
Package:WSON-6
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 0.8V to 4V Step Up Single-Out 1.8V to 4V 0.1A 6Pin WSON EP T/R
-
Stock Locations:
-
Availability:261 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.06
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS6126x devices provide a power supply solution for products powered by either single or dual cell alkaline, NiCd, or NiMH batteries. Its unique advanced softstart makes it also suitable for products powered by high output impedance battery types, like coin cells. Output currents can go as high as 100 mA while using a single cell alkaline battery, and discharge it down to 0.8 V or lower.
- The boost converter is based on a quasi fixed frequency, pulse-width-modulation (PWM) controller using synchronous rectification to obtain maximum efficiency. At low load currents, the converter enters Power Save Mode to ensure high efficiency over a wide load current range. The maximum average current in the switches is limited to a programmable value which can go as high as 700 mA. The output voltage is programmable using an external resistor divider, or is fixed internally on the chip. In addition, the average output current can be programmed as well. The converter then regulates the programmed output voltage or the programmed output current, which ever demands lower output power. The converter can be disabled to minimize battery drain. During shutdown, the load is disconnected from the battery. The device is packaged in a 6-pin WSON (DRV) package.
TPS61261DRVR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | WSON-6 |
| Number of Outputs | 1 Output |
| Output Voltage | 1.8V ~ 4V |
| Output Current | 700 mA |
| Quiescent Current | 29.0 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 2.5 MHz |
| Topology | Boost |
| Input Voltage (Max) | 4 V |
| Input Voltage (Min) | 0.8 V |
| Output Voltage (Min) | 3.3 V |
| Output Current (Max) | 0.1 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 0.8 V |
| Input Voltage | 0.8V ~ 4V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
