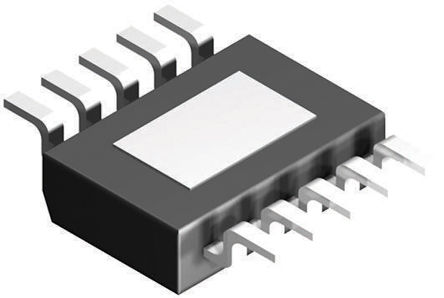

TPS62040DGQ - TI
Manufacturer:
TI
ManyChip's Part#:
MC7390887
Category:
DC to DC Converter
Package:
PowerPad-MSOP-10
Datasheet:
Datasheet 3D Model
Description:
Step-Down Regulator Adjustable, 1.2A, 95% Efficient Step-Down Converter, 18uA, MSOP-10 Conv DC-DC 2.5V to 6V Step Down Single-Out 0.7V to 6V 1.2A 10Pin HVSSOP EP Tube
Stock Locations:
Availability:
722 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.58

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS62040DGQ is a high efficiency synchronous step-down DC-to-DC Converter optimized for portable applications powered by a single Li-ion battery cell or by 3-cell NiMH/NiCd batteries. With an output voltage range from 6V down to 0.7V, the device support low voltage DSPs and processors in PDAs, pocket PCs, as well as notebooks and subnotebook computers. The TPS6204x operates at a fixed switching frequency of 1.25MHz and enters the power save mode operation at light load current to maintain high efficiency over the entire load current range. For low noise applications, the device can be forced into fixed frequency PWM mode by pulling the MODE pin high. The TPS6204x supports up to 1.2A load current.
Adjustable and fixed output voltage
Power save mode operation at light load currents
100% Duty cycle for lowest dropout
Internal soft-start
Dynamic output voltage positioning
Thermal shutdown
Short-circuit protection
Up to 95% conversion efficiency
18µA Typical quiescent current
Green product and no Sb/Br

Show

TPS62040DGQ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	PowerPad-MSOP-10
Frequency	1.25 MHz
Supply Voltage (DC)	6.00 V
Power Rating	1.67 W
Number of Outputs	1 Output
Output Voltage	0.7V ~ 6V
Output Current	1.2 A
Number of Channels	1 Channel
Number of Positions	10 Position
Quiescent Current	18.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	1.5 MHz
Topology	Buck
Switching Current	1.85 A
Input Voltage (Max)	6 V
Input Voltage (Min)	2.5 V
Output Voltage (Max)	6 V
Output Voltage (Min)	700 mV
Output Current (Max)	1.2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	3 %
Supply Voltage (Min)	2.5 V
Input Voltage	2.5V ~ 6V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	1.02 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
