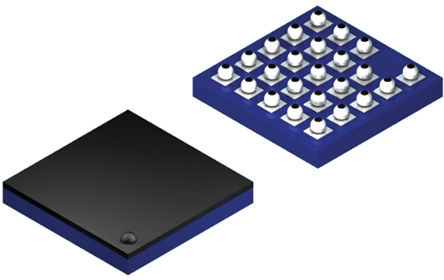

TPS62180YZFT - TI
Manufacturer:
TI
ManyChip's Part#:
MC27593007
Category:
DC to DC Converter
Package:
UFBGA-24
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 4V to 15V Step Down Single-Out 0.9V to 6V 6A 24Pin DSBGA T/R
Stock Locations:
Availability:
241 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.38

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS62180YZFT is a synchronous dual-phase step-down DC-to-DC Converter for low profile power rails. It operates with two identical, current balanced phases that are peak current controlled enabling use in height limited applications. With a wide operating input voltage range of 4 to 15V, the device is ideally suited for systems powered from multi-cell Li-ion batteries or 12V rails. The output current of 6A is continuously provided by two phases of 3A each, allowing the use of low profile external components. The phases operate out of phase, reducing switching noise significantly. The TPS6218x automatically enters power save mode to maintain high efficiency down to very light loads. It also incorporates an automatic efficiency enhancement (AEE™) for the entire duty cycle range. The device features a power good signal, as well as an adjustable soft-start. It is able to run in 100% mode and it has no duty cycle limitation even at lowest output voltage.
Dual phase balanced peak current mode
Phase shifted operation
Automatic power save mode
Adjustable soft-start
Power good output
Undervoltage lockout
HICCUP overcurrent protection
Over-temperature protection
Output voltage accuracy of ±1% (PWM mode)
28µA Typical quiescent current
Green product and no Sb/Br

Show

TPS62180YZFT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	UFBGA-24
Number of Outputs	1 Output
Output Voltage	0.9V ~ 6V
Output Current	6 A
Number of Positions	24 Position
Quiescent Current	30.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	2 MHz
Topology	Buck
Input Voltage (Max)	15 V
Input Voltage (Min)	4 V
Output Voltage (Max)	6 V
Output Voltage (Min)	900 mV
Output Current (Max)	6 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Min)	4 V
Input Voltage	15 V
	Show
Size-Length	2.13 mm
Size-Width	3.13 mm
Size-Height	0.275 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
