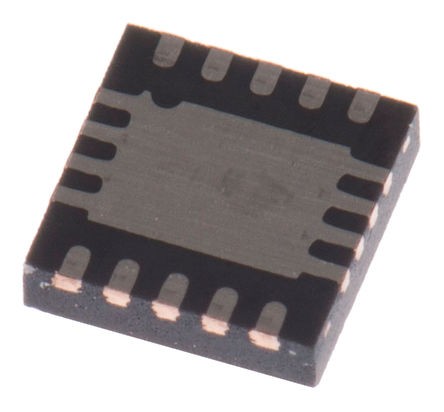

TPS63060DSCT - TI
Manufacturer:
TI
ManyChip's Part#:
MC3932800
Category:
DC to DC Converter
Package:
WFDFN-10
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 2.5V to 12V Step Down/Step Up Single-Out 2.5V to 8V 1A 10Pin WSON EP T/R
Stock Locations:
Availability:
143 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.09

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS63060DSCT is a high input voltage Buck-boost Converter with 2A switch. The TPS6306x device provides a power supply solution for products powered by either three-cell up to six-cell alkaline, NiCd/NiMH battery or one-cell/dual-cell Li-ion/Li-polymer battery. Output currents can go as high as 2A while using a dual-cell Li-ion/Li-polymer battery and discharge it down to 5V or lower. The buck-boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using synchronous rectification to obtain maximum efficiency. At low load current, the converter enters power-save mode to maintain high efficiency over a wide load current range. The power-save mode can be disabled, forcing the converter to operate at a fixed switching frequency. The maximum average current in the switches is limited to a typical value of 2.25A. The output voltage is programmable using an external resistor divider or is fixed internally on the chip.
Automatic transition between step down and boost mode
Power-save mode for improved efficiency at low output power
Forced fixed-frequency operation at 2.4MHz and synchronization possible
Power good output
Buck-boost overlap control
Load disconnect during shutdown
Over-temperature protection
Overvoltage protection
Up to 93% efficiency
<30µA Typical quiescent current
Green product and no Sb/Br

Show

TPS63060DSCT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	WFDFN-10
Number of Outputs	1 Output
Output Voltage	2.5V ~ 8V
Output Current	2 A
Number of Positions	10 Position
Quiescent Current	30.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	2.4 MHz
Input Voltage (Max)	12 V
Input Voltage (Min)	2.5 V
Output Voltage (Max)	8 V
Output Voltage (Min)	2.5 V
Output Current (Max)	1 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.5 V
Input Voltage	2.5V ~ 12V
	Show
Size-Length	3.15 mm
Size-Width	3.15 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
