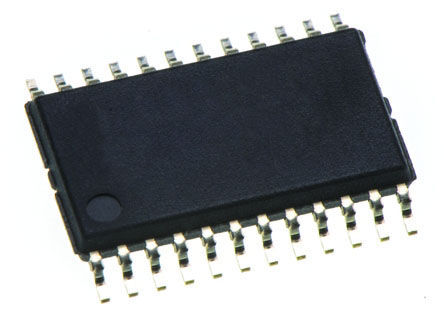

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- LCD Monitor, Notebook Display PMIC 24-HTSSOP
TPS65150PWP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | HTSSOP-24 |
| Frequency | 1.38 MHz |
| Supply Voltage (DC) | 1.80V (min) |
| Number of Outputs | 3 Output |
| Supply Current | 1.9 mA |
| Power Dissipation | 3300 W |
| Quiescent Current | 1.90 mA |
| Number of Regulated Outputs | 3 Output |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 3300 mW |
| Supply Voltage | 1.8V ~ 6V |
| Show | |
| Size-Length | 7.9 mm |
| Size-Width | 4.5 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
