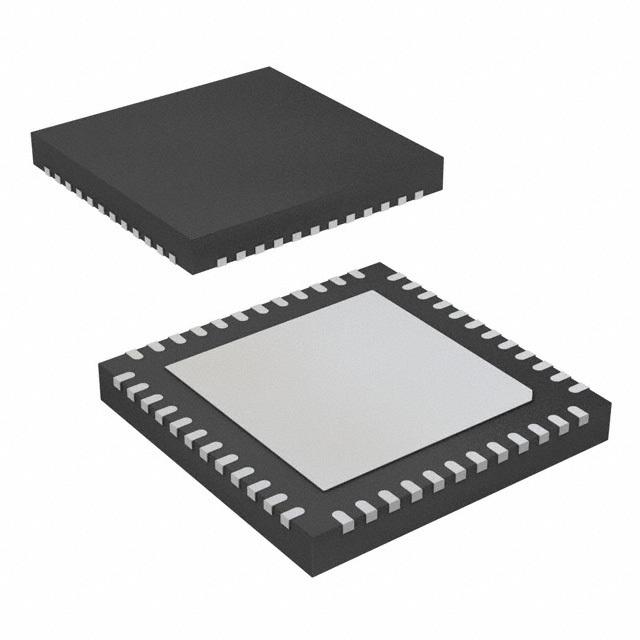

Image is for your reference only,please check specifications for details
- TPS65162RGZR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC24051586
-
Category:Power Management IC
-
Package:VQFN-48
-
Datasheet:Datasheet 3D Model
-
Description:4CH LCD Bias w/ Integrated Input-to-Output Isolation Switch, 2 Op-Amps & GPM 48-VQFN -40℃ to 85℃
-
Stock Locations:
-
Availability:324 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.39
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The TPS65162 is a compact LCD bias IC with two high-speed operational amplifiers for the Vcom supply. The high current capability of the device is ideal for large LCD-monitor and LCD-TV applications.
- FEATURES
- • 8-V to 14.4-V Input Voltage Range
- • 500 kHz / 750 kHz Fixed Switching Frequency
- • Boost Output Voltage up to 19 V
- – 1%-Accurate Boost With 2.8-A Switch Current Overvoltage Protection
- • Input-to-Output Isolation Switch for Vs Short-Circuit protection for Boost
- • 2.5-A Step-Down Converter
- • Regulated Positive Charge-Pump Driver VGH
- • Regulated Negative Charge-Pump Driver VGL
- • Gate Voltage Shaping for VGH
- • Soft Start for all Converters
- • Two Integrated High-Speed Opamps
- – 50-MHz, 3-dB Bandwidth
- – Slew Rate 55 V / µs
- – 215-mA Short-Circuit Current
- • 48 Pin 7x7 mm QFN Package
TPS65162RGZR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | VQFN-48 |
| Supply Voltage (DC) | 8.00V (min) |
| Output Voltage | ≥8.00 V |
| Quiescent Current | 1.70 mA |
| Number of Regulated Outputs | 4 Output |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 8V ~ 14.7V |
| Show | |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
