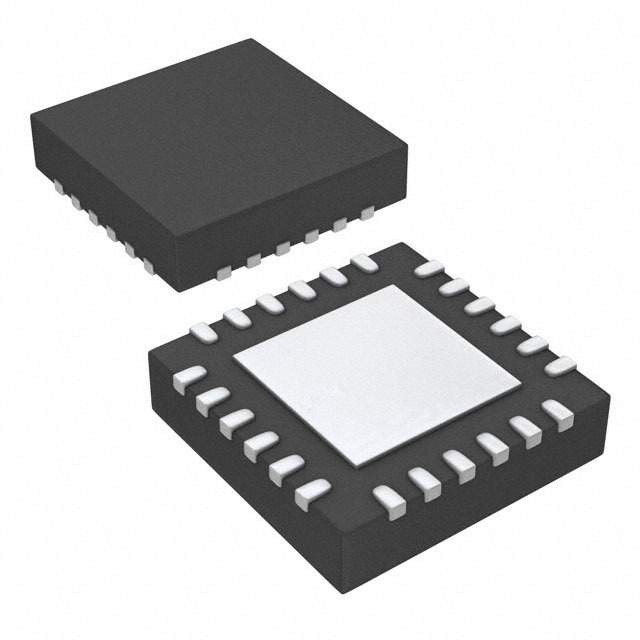

- TPS65270RGER - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC15656000
-
Category:Power Management IC
-
Package:VQFN-24
-
Datasheet:Datasheet 3D Model
-
Description:2 Buck Converter with 4.5V to 16V Input Voltage, 2A/3A Output Current 24-VQFN -40℃ to 85℃
-
Stock Locations:
-
Availability:1,024 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.31
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION/ORDERING INFORMATION
- The TPS65270 is a monolithic dual synchronous buck regulator with wide operating input voltage that can operate in 5-, 9-, 12- or 15-V bus voltages and battery chemistries. The converters are designed to simplify its application while giving the designer the option to optimize their usage according to the target application.
- FEATURES
- • Wide Input Supply Voltage Range (4.5 V - 18 V)
- • 0.8 V, ±1% Accuracy Reference
- • Up to 2-A (Buck 1) and 3-A (Buck 2) Maximum Continuous Output Loading Current
- • Low Power Pulse Skipping Mode to Achieve High Light Load Efficiency
- • Adjustable Switching Frequency 300 kHz - 1.4 MHz Set by External Resistor
- • Dedicated Enable and Soft-Start for Each Buck
- • Peak Current-Mode Control with Simple Compensation Circuit
- • Cycle-by-Cycle Over Current Protection
- • 180° Out-of-Phase Operation to Reduce Input Capacitance and Power Supply Induced Noise
- • Available in 24-Lead Thermally Enhanced HTSSOP (PWP) and QFN 4-mm x 4-mm (RGE) Packages
- APPLICATIONS
- • DTV
- • DSL Modems
- • Cable Modems
- • Set Top Boxes
- • Car DVD Players
- • Home Gateway and Access Point Networks
- • Wireless Routers
TPS65270RGER Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | VQFN-24 |
| Number of Outputs | 2 Output |
| Output Voltage | 15 V |
| Output Current | 2A, 3A |
| Power Dissipation | 3070 mW |
| Number of Regulated Outputs | 2 Output |
| Switching Frequency | 300kHz ~ 1.4MHz |
| Topology | Buck |
| Switching Current | 0.2 A |
| Input Voltage (Max) | 18 V |
| Input Voltage (Min) | 4.5 V |
| Output Voltage (Max) | 15 V |
| Output Voltage (Min) | 0.8 V |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 18 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
