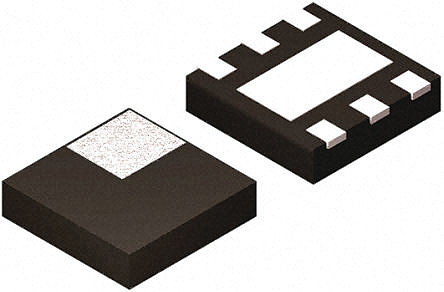

Image is for your reference only,please check specifications for details

TPS73533DRVT - TI
Manufacturer:
TI
ManyChip's Part#:
MC3475959
Category:
Voltage Regulator
Package:
WDFN-6
Datasheet:
Datasheet 3D Model
Description:
Single Channel LDO Single Output LDO, 500mA, Fixed (3.3V), Low Quiescent Current, Low Noise, High PSRR LDO Regulator Pos 3.3V 0.5A 6Pin WSON EP T/R
Stock Locations:
Availability:
264 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.31

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS73533DRVT is a 3.3V fixed output low-dropout (LDO) low-power Linear Regulator offers excellent AC performance with very low ground current. High power-supply rejection ratio (PSRR), low noise, fast start-up and excellent line and load transient responses are provided while consuming a very low 46µA typical ground current. The device is stable with ceramic capacitors and uses an advanced BiCMOS fabrication process to yield a typical dropout voltage of 280mV at 500mA output. The device uses a precision voltage reference and feedback loop to achieve overall accuracy of 2% (VOUT >2.2V) over all load, line, process and temperature variations.
68dB at 1kHz High PSRR
13.2µVrms Ultra-low noise
45µs Fast start-up time
Stable with a standard 2.2µF Low-ESR output capacitor

Show

TPS73533DRVT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	WDFN-6
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	500 mA
Supply Current	65 µA
Number of Positions	6 Position
Power Dissipation	1540 W
Quiescent Current	0.046 mA
Output Capacitor Type	Ceramic
voltage rating	280 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	6.5 V
Input Voltage (Min)	2.7 V
Output Voltage (Min)	3.3 V
Output Current (Max)	0.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Supply Voltage (Min)	2.7 V
Input Voltage	≤6.5 V
	Show
Size-Length	2.1 mm
Size-Width	2.1 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
